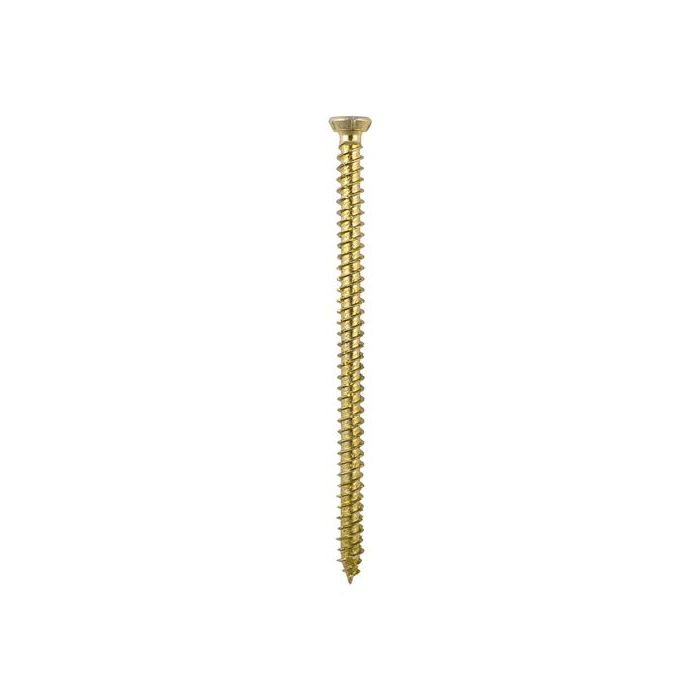

Timco Concrete Screw 7.5mm x 80mm (100 In Box)

Timco Concrete Screw is an innovative fixing solution designed to replace traditional fixings, providing a reliable and efficient option for a range of construction and DIY applications. Ideal for trade professionals and home improvement enthusiasts alike, these screws are perfect for securing materials to concrete, brick, stone, and various other substrates.

With a unique serrated V-thread design, these screws boast excellent grip and stability, making them suitable for use in low and high-density materials. Their zinc-plated finish ensures corrosion resistance, while the included T30 driver bit simplifies installation. This versatile fixing solution offers considerable strength with recommended tensile loads of 1.50kN and shear loads of 2.00kN, making it ideal for various construction projects.

Specifications

Screw Diameter: 7.5mm
Screw Length: 80mm
Head Type: T30 Torx drive pan head; Flat countersunk head with 5 locking ribs
Finish: Zinc plated; Zinc and Yellow
Driver Bit Included: Yes (T30 driver bit included)
Thread Type: Serrated V-threads with deep high/low thread
Recommended Drill Hole: 6mm for low density, 6.5mm for high density materials
Fixture Clearance Hole: 8mm
Maximum Fixture Thickness: 30mm
Suitable Substrates: Concrete, brick (solid and perforated), stone (natural), concrete block, wood, timber, battens, wooden laths, facades, metal profiles, panels, hollow blocks, aircrete
Centre Spacing: 60mm
Edge Distance: 50mm
Minimum Concrete Thickness: 75mm
Recommended Tensile Load: 1.50kN
Recommended Shear Load: 2.00kN
Bending Moment: 7.00Nm
Recommended Embedment Depth: Concrete: min 25mm; Brickwork: min 40mm; Aircrete: min 60mm

Key Features

• Single solution for various fixing needs
• High tensile and shear strength
• Corrosion-resistant zinc plating
• Includes T30 driver bit for easy installation
• Suitable for multiple substrates including concrete and brick
