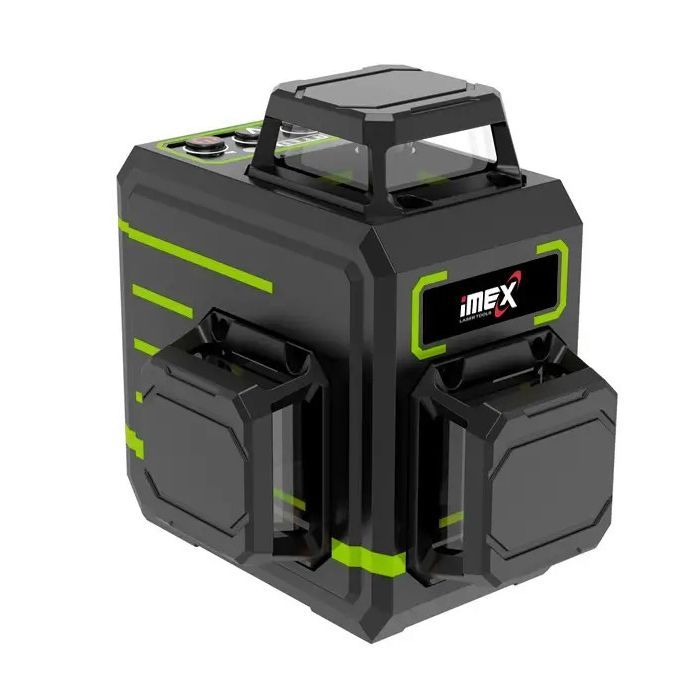

Imex ELX3 Mini Multi-Line Laser – Green Beam

Compact 3 x 360° multi-line laser with a high-visibility green beam (520nm), four adjustable brightness levels and a non-slip rubberised housing. Self-levelling within ±4° and accurate to ±3mm at 10m, with an effective range of 50m when used with the optional detector.

Used for interior alignment, layout marking and levelling work where a compact green-beam multi-line laser with high visibility is required.

Specifications

Type: 3 x 360° multi-line laser
Beam Colour: Green (520nm)
Accuracy: ±3mm at 10m
Self-levelling Range: ±4°
Working Range: 50m with detector
Laser Class: Class 2
Power: 3.7V 4Ah lithium, USB-C charge
Run Time: Approx 6 hours
IP Rating: IP54
Operating Temperature: -10°C to +50°C

Key Features

• High-visibility green beam (520nm)
• 3 x 360° line projection (1H, 2V)
• Four adjustable brightness levels
• Self-levelling within ±4°
• USB-C rechargeable lithium battery
• Non-slip rubberised housing
• IP54 dust and splash rated
• 50m range with detector
