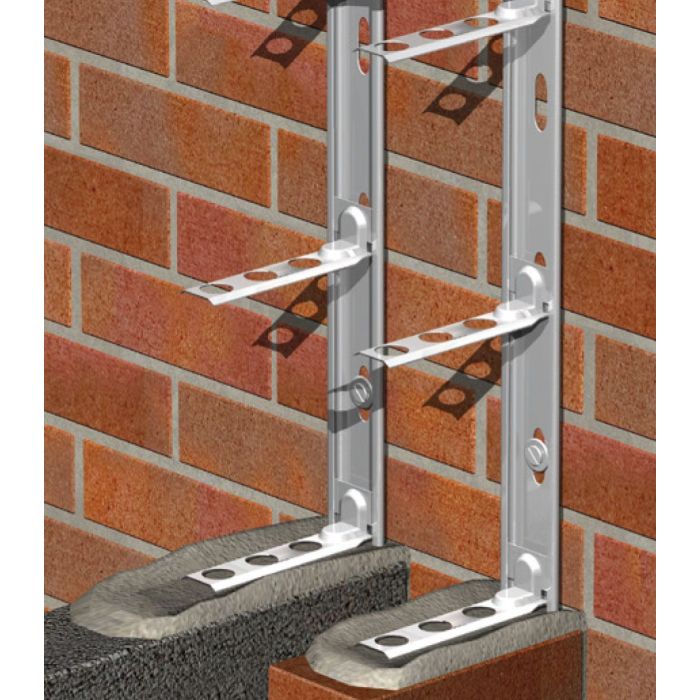

Expamet Multi Wall Starter Universal Stainless Steel – 1155 mm x 100 mm

The Expamet Multi Wall Starter Universal is a robust wall tie crafted from high-quality stainless steel (grade 430). It is designed to connect new and existing walls with thicknesses ranging from 60 mm to 250 mm. The product features a mill finish that enhances its durability and resistance against harsh conditions.

Engineered for load-bearing applications, this wall tie has a declared load-bearing capacity of 6 kN per 1155 mm length and supports structures up to a maximum height of 8 metres. The product includes M6x50 hex head coach screws to facilitate installation. Used for structural masonry work and building refurbishment where reliable load support is required.

Specifications

Material: Stainless Steel
Length: 1155 mm
Width: 100 mm
Material Gauge: 0.6 mm
Declared Load-bearing Capacity: 6 kN per 1.155 m length
Max Height: 8 metres
Fixing Hole Dimensions: 18 x 5.5 mm slots
Fixing Type: M6x50 Hex Head Coach Screws (Supplied)

Key Features

• Constructed from high-grade stainless steel for durability and corrosion resistance.
• Supports wall thicknesses from 60 mm up to 250 mm.
• Declared load-bearing capacity of 6 kN ensures structural integrity.
• Suitable for structures up to 8 metres in height.
• Includes M6x50 hex head coach screws to simplify fixing.
• Fixing holes sized 18 x 5.5 mm allow versatile mounting options.
