Actis Hybris Insulation Panels 105mm (4 Pack) - Multifoil Ins 4800x1145mm (5.49m²)

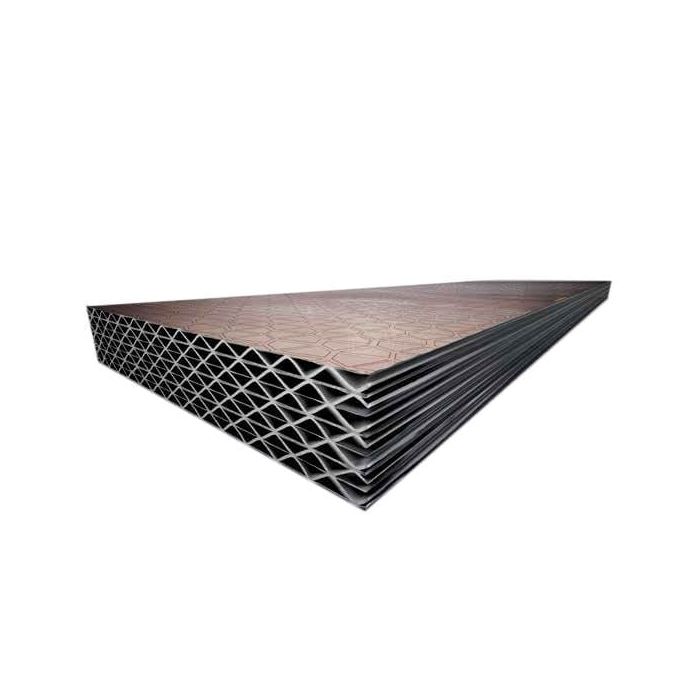

Actis Hybris insulation panels are multilayer insulation boards featuring a honeycomb structure of shaped polyethylene foams bonded to aluminium-coated polyethylene foils. Each panel measures 1200mm in length and 1145mm in width, with a thickness of 105mm. The pack contains four panels and covers a total area of 5.49m². These panels combine thermal performance with structural integrity and resistance to air and water penetration.

With a thermal conductivity of 0.033 W/m.K and thermal resistance of 3.15 m².K/W for the 105mm thickness, the panels offer enhanced insulation capabilities. The R-value can increase to 3.75 m².K/W with one air gap or up to 4.05 m².K/W with two air gaps depending on installation. Fire performance is rated Class E with Fire Retardant F, making these panels resistant to fire propagation. They exhibit high vapour resistance (1100 MNs/g), watertightness (W1), and airtightness, suitable for energy-efficient building applications. Used for new-build housing and commercial refurbishments where effective thermal insulation and moisture control are required.

Specifications

Thickness: 105mm
Length: 1200mm
Width: 1145mm
Type: Multifoil insulation panel
Material: Honeycomb polyethylene foam bonded to aluminium-coated polyethylene foils
Thermal Conductivity (λ): 0.033 W/m.K
Thermal Resistance (R-Value): 3.15 m².K/W (105mm thickness)
Fire Performance: Class E / Fire Retardant F
Vapour Resistance: 1100 MNs/g
Watertightness: Watertight (W1)
Air Permeability: Airtight
Density: 9.5 kg/m³
Certifications: ISO 9001, EN 16012, LABC Registered Details (RD 462), BBA, CE Marked

Key Features

• Honeycomb polyethylene foam bonded to aluminium-coated foils for structural stability
• Thermal conductivity of 0.033 W/m.K providing effective insulation
• R-Value of 3.15 m².K/W at 105mm thickness; increased with one or two air gaps
• Class E fire performance with Fire Retardant F rating
• High vapour resistance reducing moisture ingress
• Watertight and airtight for enhanced building envelope integrity
• Lightweight density of 9.5 kg/m³ for easier handling
• Comprehensive certifications including ISO 9001, BBA, and CE marking
