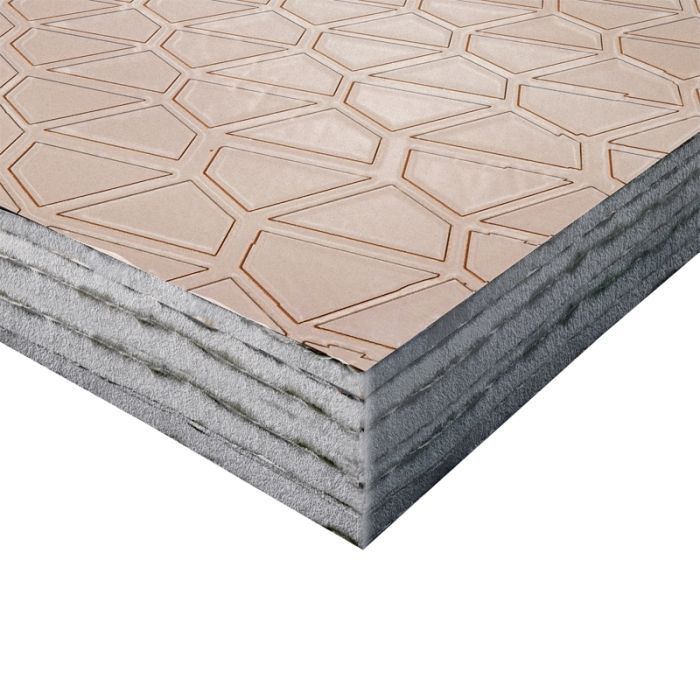

Actis H Control Hybrid 10m2 - Vapour Control Layer 6250x1600mm

The Actis H Control Hybrid is a vapour control membrane featuring multifoil insulation designed to provide both airtightness and thermal performance. Measuring 6250mm by 1600mm with a thickness of 45mm, it covers an area of 10m² and weighs 880g per square metre. This flexible membrane has a core R-value of 1.90 m²K/W and thermal conductivity of 1.90 m².K/W, making it effective in reducing heat loss.

Engineered for use on the warm side of insulation, it is suitable for applications across ceilings, roofs, walls, and suspended timber floors. It is compatible with all types of insulation and offers Euroclass E fire resistance. Used for building envelope construction and refurbishment where airtightness and vapour control are required.

Specifications

Type: Hybrid vapour control membrane, multifoil insulation
Length: 6.25m
Width: 1.6m
Weight: 880g/m²
Thickness: 45mm
Core R value: 1.90 m²K/W
Thermal conductivity: 1.90 m².K/W
Fire rating: Euroclass E
Application: Ceiling, Roof, Walls, Suspended Timber Floors; for use on the warm side of insulation
Compatibility: Compatible with all types of insulation
Airtight and watertight: Yes
Minimal air permeability: Yes
Flexible: Yes

Key Features

• Dual-function vapour control and insulation membrane
• Reduces main insulation thickness while maintaining thermal performance
• Minimises installation steps for efficiency
• Reduces thermal bridging in building fabric
• Contains no irritating fibres
• Lightweight and flexible for ease of installation
• Provides airtight and watertight solution
