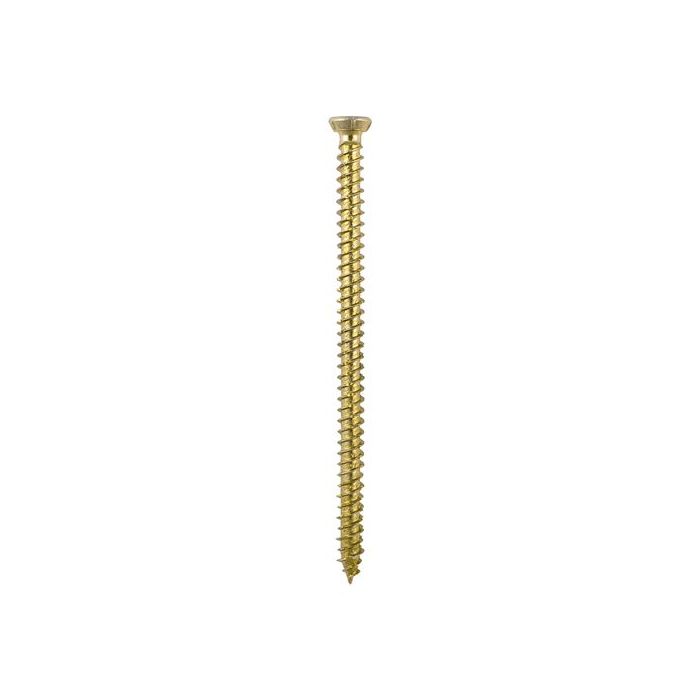

Timco Concrete Screw 7.5mm x 100mm (100 In Box)

The Timco Concrete Screw is a robust fastening solution designed for use in concrete applications, suitable for both trade professionals and DIY enthusiasts. This versatile screw features a diameter of 7.5mm and a length of 100mm, making it ideal for securely fixing various materials into concrete, brickwork, and aircrete. The innovative design includes a flat countersunk head with five locking ribs, ensuring a secure fit and reducing the risk of loosening over time.

Engineered for high performance, the screw can accommodate a maximum fixture thickness of 50mm and features a recommended tensile load of 1.50kN and shear load of 2.00kN. With its zinc and yellow plated finish, the screw is not only durable but also provides resistance against corrosion, making it suitable for long-term use in various environments.

Specifications

Type: Concrete screw
Diameter: 7.5mm
Length: 100mm
Head Type: Flat countersunk with 5 locking ribs
Finish: Zinc and yellow plated
Driver Bit Size: T30
Included Driver Bit: Yes
Pack Quantity: 100
Drill Hole Diameter: Low density: 6.0mm, High density: 6.5mm
Fixture Clearance Hole: 8mm
Maximum Fixture Thickness: 50mm
Recommended Embedment Depth (Concrete): 25mm
Recommended Embedment Depth (Brickwork): 40mm
Recommended Embedment Depth (Aircrete): 60mm
Minimum Concrete Thickness: 75mm
Centre Spacing: 60mm
Edge Distance: 50mm

Key Features

• Replaces traditional fixings for a streamlined solution
• High load capacity for reliable performance
• Enhanced corrosion resistance with zinc and yellow plating
• Easy to install with included T30 driver bit
• Flat countersunk head design for flush finish
