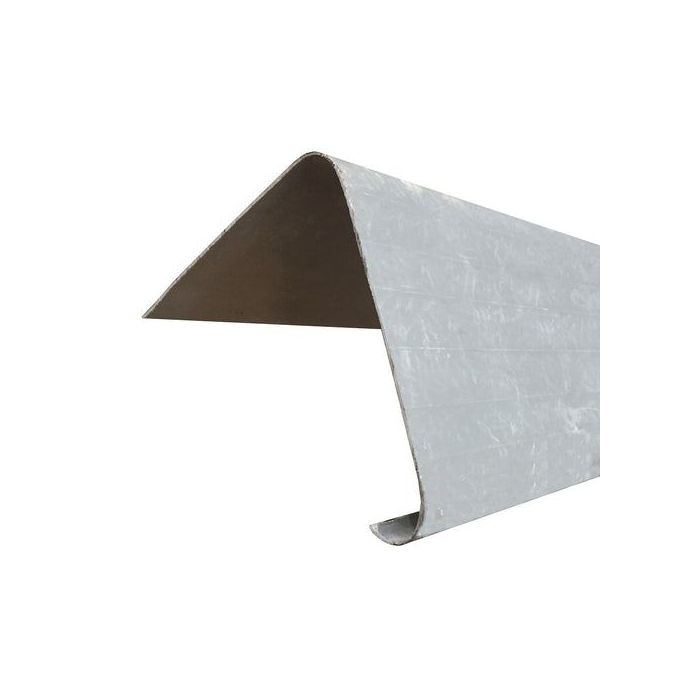

Girth (the visible part of the trim) - 90mm. Depth (the fixing arm back onto the roof) - 90mm. These trims are fitted to the roof edge allowing drainage into the gutter.

Features:

• Compatible with C1 corner
• Unique high-bond finish. Designed for use with roofing resin and topcoat. No delamination
• Flexible for uneven surfaces
• Pre-pigmented
• UV stabilised
• Easy jointing


Fitting Instructions

• Two support battens should be fixed to the perimeter of the roof to provide space for the gutter to fit behind the trim, with the outer batten attached 10mm lower than the inner batten to allow the trim to sit flush with the roof.
• Apply trim adhesive to the batten in 30mm beads at 300mm centre
