ETX-M Insulation Fixing 8.0 x 155 (100PCS)

TIMco ETX-M Insulation Fixing - 8.0 x 155mm

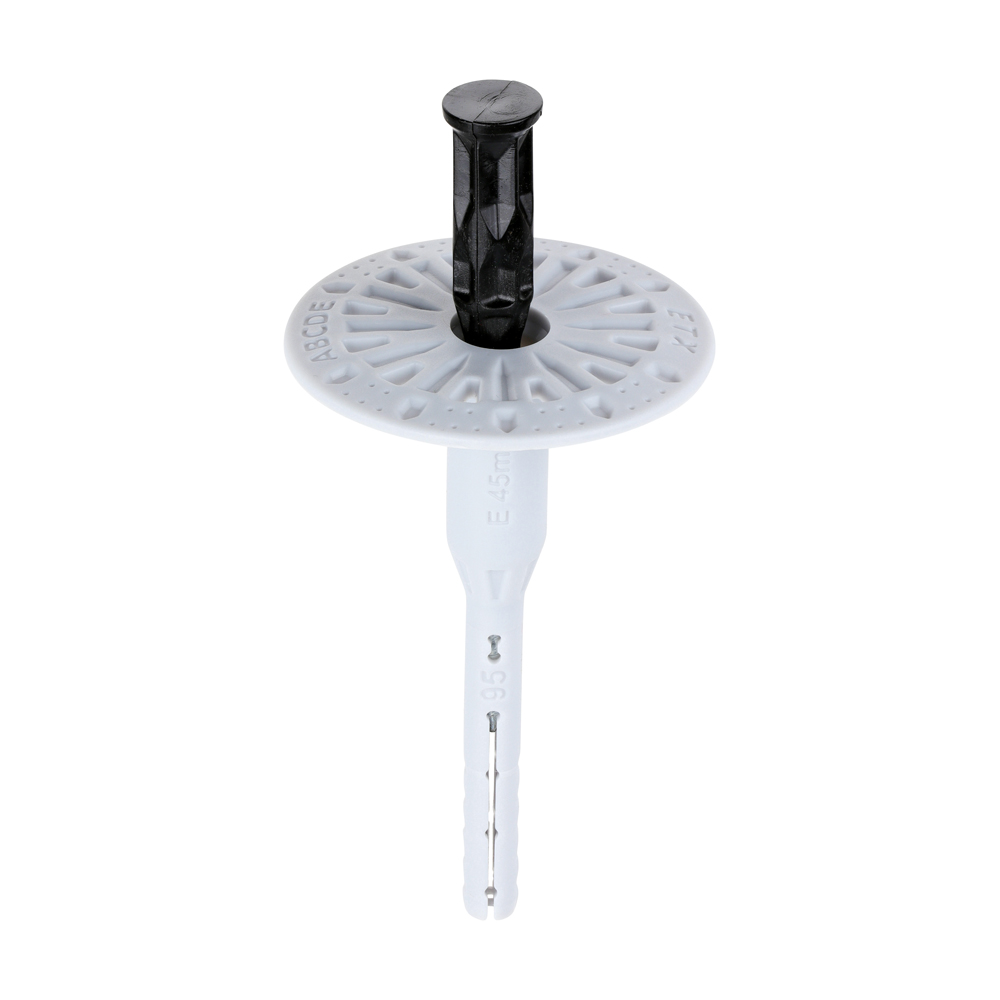

The ETX-M is a hammer-in insulation fixing with a polypropylene sleeve, a 60mm plate and a galvanised steel pin that carries an over-moulded plastic insulator to break the thermal path through the fastener. The fixing is driven home with a hammer once the board is offered up, so no separate screwing operation is needed.

At 8.0 x 155mm this length suits insulation up to 120mm, or 140mm where the plate is countersunk into the board. It anchors into concrete, solid clay and calcium silicate brick, perforated and hollow brick, lightweight aggregate concrete and aerated concrete. Used for fixing external wall insulation and for mechanically retaining rigid boards and mineral wool where a low thermal bridge through the fastener is required.

Specifications

Type: Hammer-in insulation fixing
Length: 155mm
Diameter: 8mm
Plate Diameter: 60mm
Pin Material: Galvanised steel with plastic insulator
Sleeve Material: Polypropylene
Drill Diameter: 8mm
Hole Depth: 35mm, or 55mm in aerated concrete
Anchorage Depth: 25mm, or 45mm in aerated concrete
Insulation Thickness: Up to 120mm, or 140mm countersunk
Fixing Density: 6 to 8 per m2, 8 to 10 per m2 at corners
Minimum Substrate Thickness: 100mm

Key Features

• Hammer-in installation with no separate screwing step

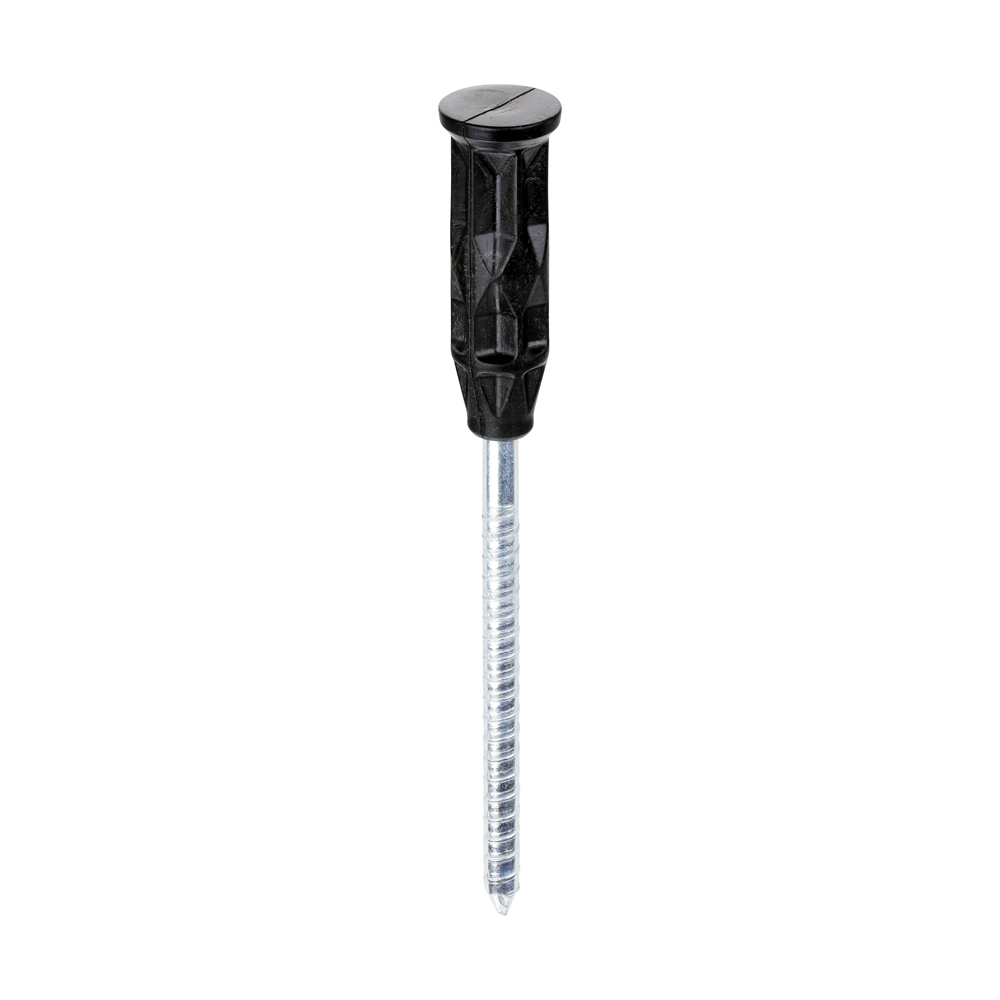

• Steel pin with an over-moulded plastic insulator to reduce heat loss through the fastener

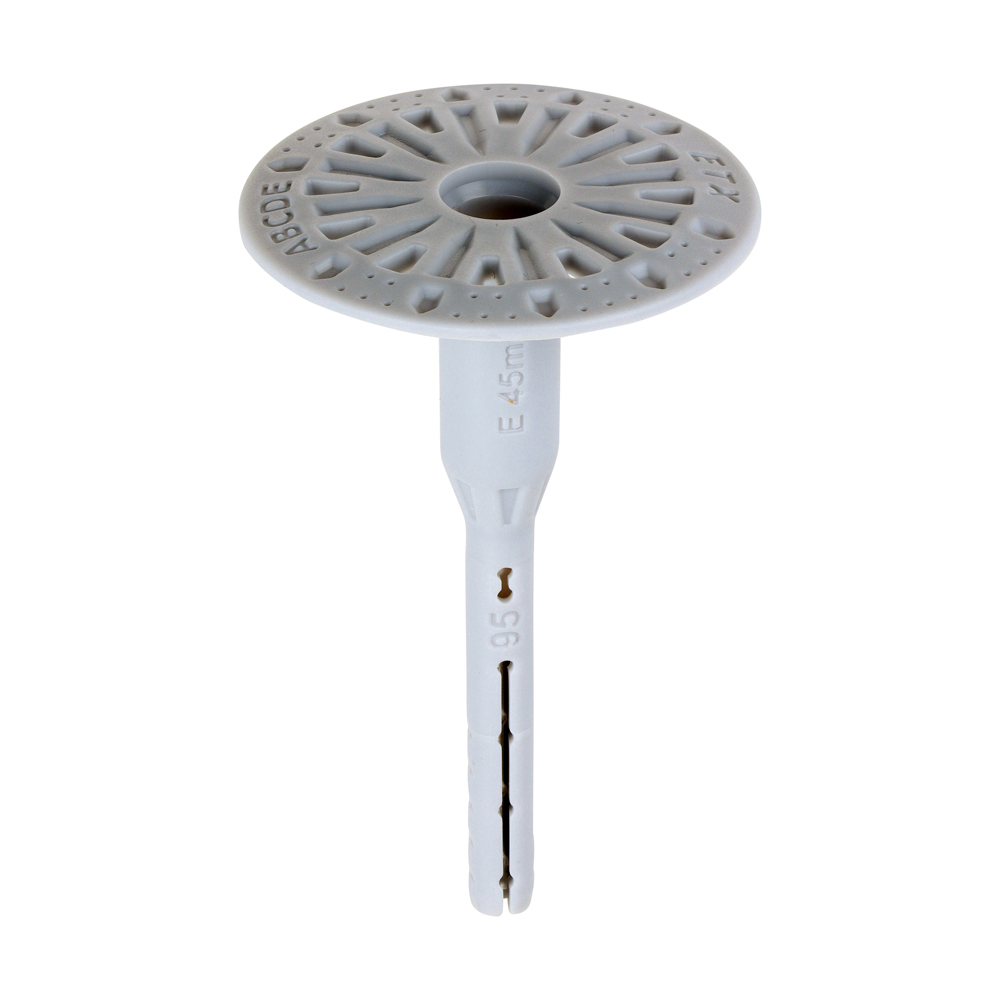

• 60mm plate spreads the load across the board face
• Polypropylene sleeve
• Fixes into concrete, solid brick, perforated brick, lightweight aggregate concrete and aerated concrete
• Suits insulation up to 120mm, or 140mm countersunk
• Rotary drilling only in perforated brick, lightweight aggregate concrete and aerated concrete
• Compatible with pressure plates for soft insulation such as mineral wool
