Rawlplug Rawlbolt Loose Bolt M8 x 65mm Pack of 5

Rawlplug Rawlbolt Loose Bolt Shield Anchor - M8 x 65mm (Pack of 5)

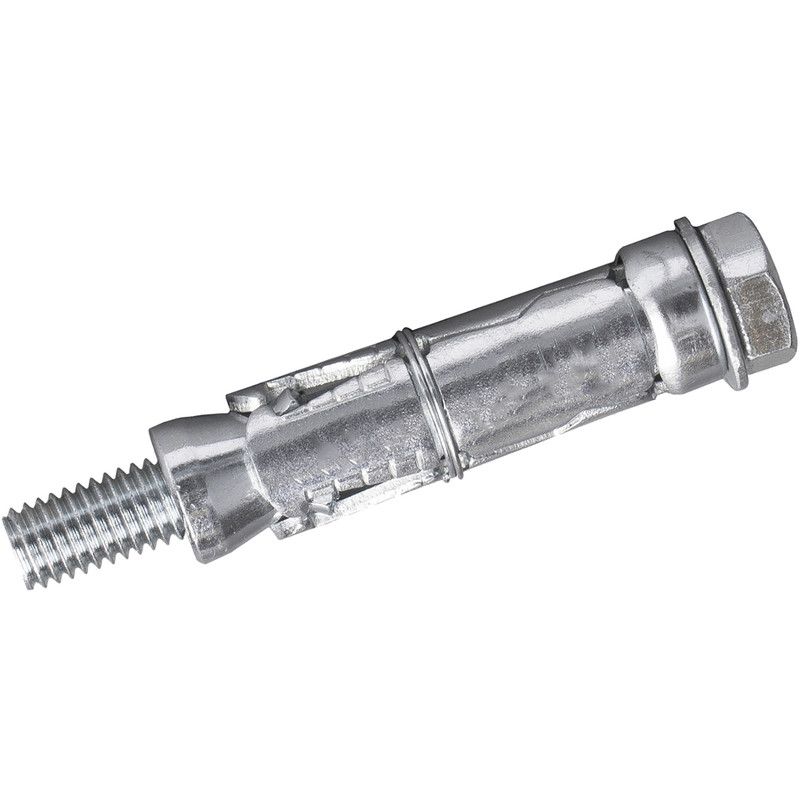

The Rawlplug Rawlbolt loose bolt is an expanding shield anchor for use in cracked and non-cracked concrete, hollow-core slabs, flooring blocks and ceramics. This M8 size has a 65mm anchor length and takes fixtures up to 10mm thick, and the pack contains 5 anchors.

A three-piece expanding sleeve gives maximum expansion for load and safety of use in the substrate. It installs in a 14mm hole with a minimum hole depth of 55mm, a 9mm fixture hole and an installation torque of 15Nm, and Rawlplug recommends it for applications requiring fire resistance. Used for fixing roller shutter doors and structural steelwork where a heavy-duty expanding anchor is required.

Specifications

Brand: Rawlplug
Type: Rawlbolt Loose Bolt Shield Anchor
Thread Size: M8
Anchor Length: 65mm
Max. Fixture Thickness: 10mm
Hole Diameter in Substrate: 14mm
Fixture Hole Diameter: 9mm
Min. Hole Depth: 55mm
Min. Installation Depth: 50mm
Installation Torque: 15Nm
Wrench Size: 13mm
Min. Substrate Thickness: 100mm
Min. Spacing: 40mm
Min. Edge Distance: 60mm
Quantity: 5 anchors

Key Features

• For cracked and non-cracked concrete
• Also for hollow-core slabs, flooring blocks and ceramics
• Three-piece expanding sleeve for maximum expansion
• Recommended for applications requiring fire resistance
• Loose bolt version - bolt passes through the fixture
• M8 thread, 65mm length, 10mm max fixture thickness
• Drill 14mm hole, tighten to 15Nm
• Pack of 5 anchors
