Rawlplug Rawlbolt Loose Bolt M10 x 75mm Pack 5

Rawlplug Rawlbolt Loose Bolt M10 x 75mm Pack 5
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Thread size: M10
  • Anchor length: 75mm
  • Max fixture thickness: 10mm
  • Hole diameter: 16mm
  • Pack of 5 anchors
£10.20
per Each inc VAT
In Stock
Unable to load stock information

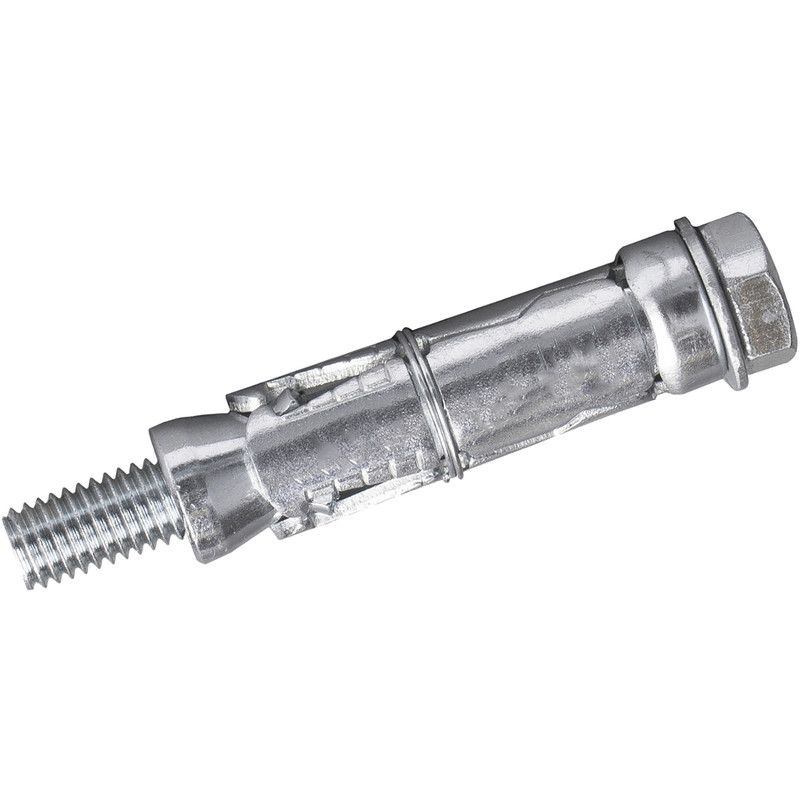

Rawlplug Rawlbolt Loose Bolt Shield Anchor - M10 x 75mm (Pack of 5)

The Rawlplug Rawlbolt loose bolt is an expanding shield anchor for use in cracked and non-cracked concrete, hollow-core slabs, flooring blocks and ceramics. This M10 size has a 75mm anchor length and takes fixtures up to 10mm thick, and the pack contains 5 anchors.

A three-piece expanding sleeve gives maximum expansion for load and safety of use in the substrate. It installs in a 16mm hole with a minimum hole depth of 65mm, an 11mm fixture hole and an installation torque of 27Nm, and Rawlplug recommends it for applications requiring fire resistance. Used for fixing steel structures and gates where a heavy-duty expanding anchor is required.

Specifications

Brand: Rawlplug
Type: Rawlbolt Loose Bolt Shield Anchor
Thread Size: M10
Anchor Length: 75mm
Max. Fixture Thickness: 10mm
Hole Diameter in Substrate: 16mm
Fixture Hole Diameter: 11mm
Min. Hole Depth: 65mm
Min. Installation Depth: 60mm
Installation Torque: 27Nm
Wrench Size: 17mm
Min. Substrate Thickness: 100mm
Min. Spacing: 50mm
Min. Edge Distance: 75mm
Quantity: 5 anchors

Key Features

  • For cracked and non-cracked concrete
  • Also for hollow-core slabs, flooring blocks and ceramics
  • Three-piece expanding sleeve for maximum expansion
  • Recommended for applications requiring fire resistance
  • Loose bolt version - bolt passes through the fixture
  • M10 thread, 75mm length, 10mm max fixture thickness
  • Drill 16mm hole, tighten to 27Nm
  • Pack of 5 anchors

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
