Unilin Thin-R XT/PR_UF 140mm PIR Board 2400 x 1200mm

Unilin Thin-R XT/PR_UF PIR Insulation Board - 140mm

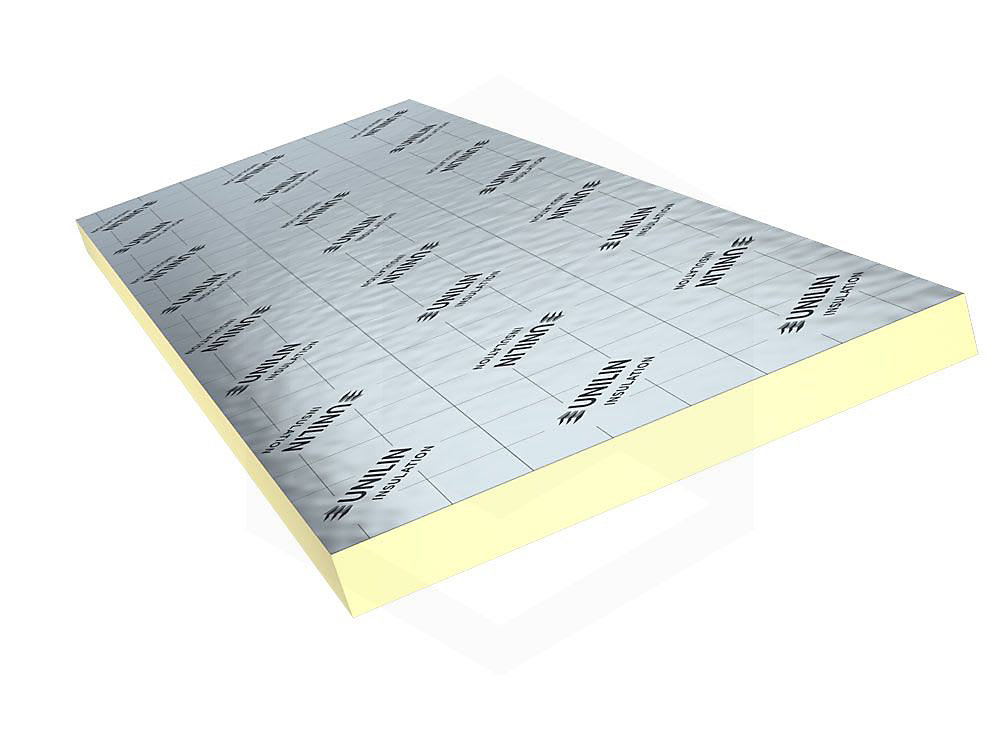

A rigid PIR insulation board from the Unilin Insulation Thin-R range, 2400 x 1200mm and 140mm thick, with a composite foil facing on both sides and square edges. It has a thermal conductivity of 0.022 W/mK and a compressive strength of 140kPa.

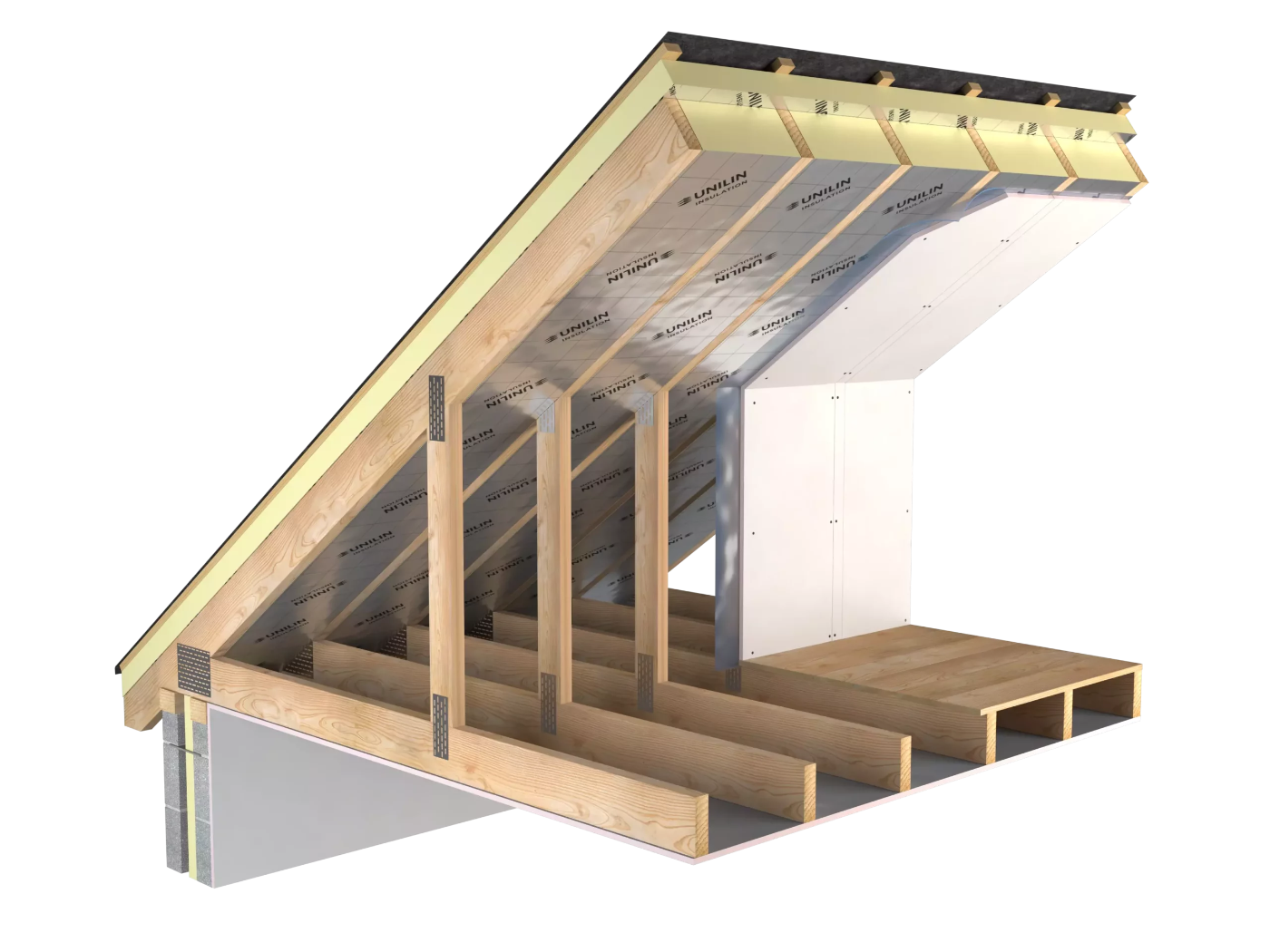

XT/PR_UF is designed for pitched roofs, fitted between and under the rafters, and for ground supported and suspended floors, including floors with underfloor heating. Used for pitched roofs and floors where a high performance, slim insulation board is required.

Specifications

Brand: Unilin Insulation
Type: Foil faced PIR insulation board
Thickness: 140mm
Size: 2400 x 1200mm
Thermal Conductivity: 0.022 W/mK
Compressive Strength: 140kPa
Edge: Square
Application: Pitched roofs and floors

Key Features

• Rigid PIR insulation core
• Composite foil facing on both sides
• Thermal conductivity of 0.022 W/mK
• 140kPa compressive strength
• 140mm thick, 2400 x 1200mm board
• Pitched roofs, between and under rafters
• Floors, including underfloor heating
