Unilin Thin-R Cavity Wall Board 90mm 1200 x 450mm

Unilin Thin-R XT/CW PIR Cavity Wall Board - 90mm T&G

A rigid PIR partial fill cavity wall board from the Unilin Insulation Thin-R range, 1200 x 450mm and 90mm thick, with foil facings on both sides and tongue and groove edges on all four sides. It has a thermal conductivity of 0.022 W/mK.

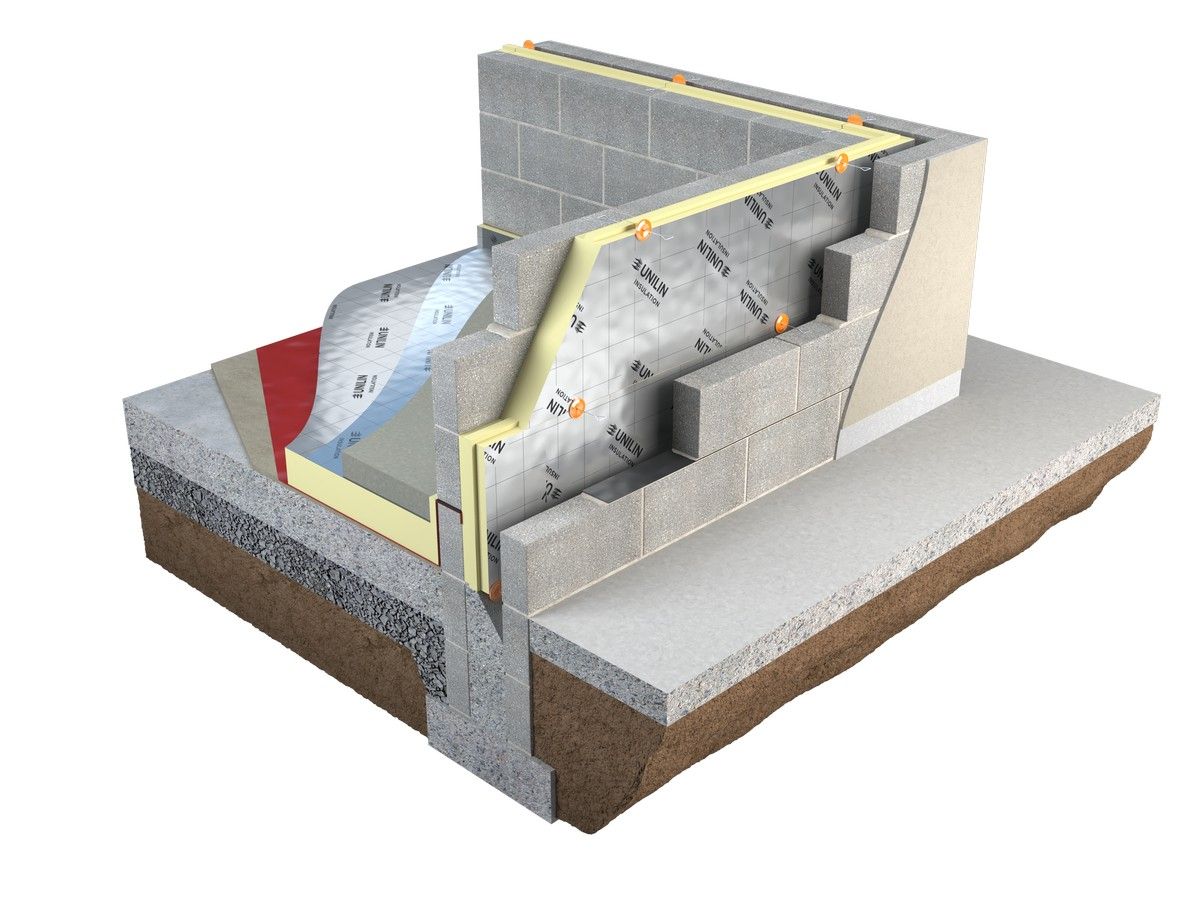

The board is fixed against the inner leaf of a masonry cavity wall, leaving a clear residual cavity. Used for partial fill cavity walls in new build and extensions where high thermal performance in a slim board is required.

Specifications

Brand: Unilin Insulation
Type: PIR cavity wall board
Thickness: 90mm
Size: 1200 x 450mm
Thermal Conductivity: 0.022 W/mK
Edge: Tongue and groove, 4 sides
Application: Partial fill masonry cavity walls

Key Features

• Rigid PIR insulation core
• Foil faced on both sides
• Thermal conductivity of 0.022 W/mK
• 90mm thick, 1200 x 450mm board
• Tongue and groove on all four edges
• Fixed to the inner leaf
• Leaves a clear residual cavity
