PIR Recticel Eurowall + 115mm |1200X460mm| T & G 4 Sides

Recticel Eurowall + Full Fill Cavity Board - 115mm

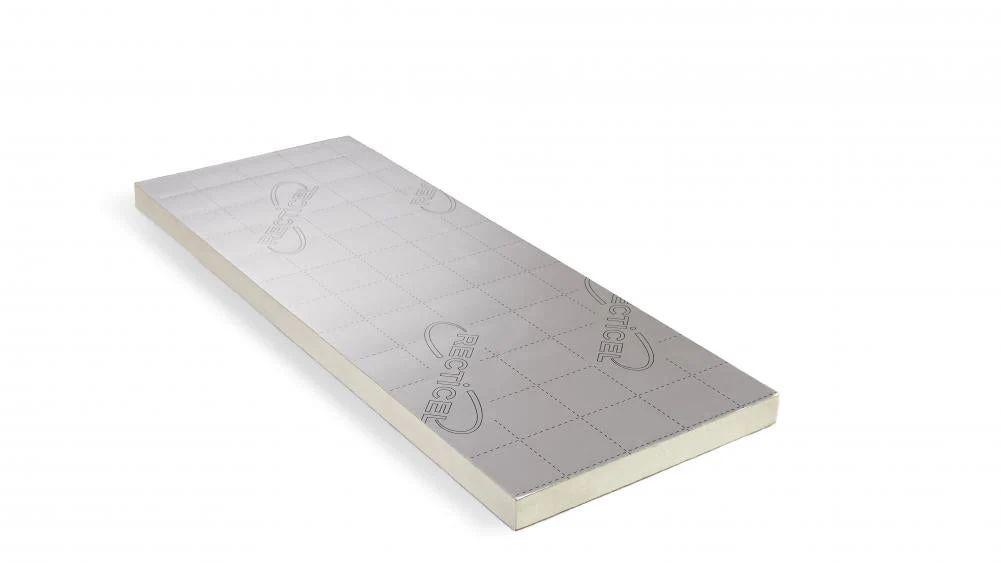

Eurowall + is a rigid polyisocyanurate cavity board with precision cut tongue and groove joints on all four edges, so the boards lock together and reduce heat loss through the joints. Both faces carry a low-emissivity aluminium foil facing, and the board is sized to leave a 10mm residual cavity so conventional bricklaying can continue as the wall is built.

The board measures 1200 x 460mm including the tongue and groove, giving a covering size of 1190 x 450mm, and this 115mm thickness is manufactured for a 125mm cavity. Used for full fill masonry cavity walls and for new build housing where a low lambda value across a continuous cavity is required.

Specifications

Type: Full fill cavity wall board
Thickness: 115mm
Length: 1200mm
Width: 460mm
Covering Size: 1190 x 450mm
Cavity Width: 125mm
Thermal Conductivity: 0.022 W/mK
Thermal Resistance: 5.20 m2K/W
Edge Finish: Tongue and groove on four sides
Core: Rigid polyisocyanurate
Facings: Low-emissivity aluminium foil both sides

Key Features

• Tongue and groove joints on all four edges
• Low lambda value of 0.022 W/mK
• Thermal resistance of 5.20 m2K/W at 115mm
• Low-emissivity foil facings to both faces
• Designed around a 10mm residual cavity
• Manufactured for a 125mm cavity
• Board size 1200 x 460mm including the tongue and groove
• Zero ozone depletion potential blowing agent
