Imex LX22G Green Crossline Laser with Plumb

Imex LX22G Green Crossline Laser with Plumb
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Beam colour: Green
  • Cross lines with plumb spots
  • Range: 30m radius
  • IP54 rated
  • Includes hard carry case
£192.92
per Each inc VAT
In Stock(Only 2 left)
Unable to load stock information

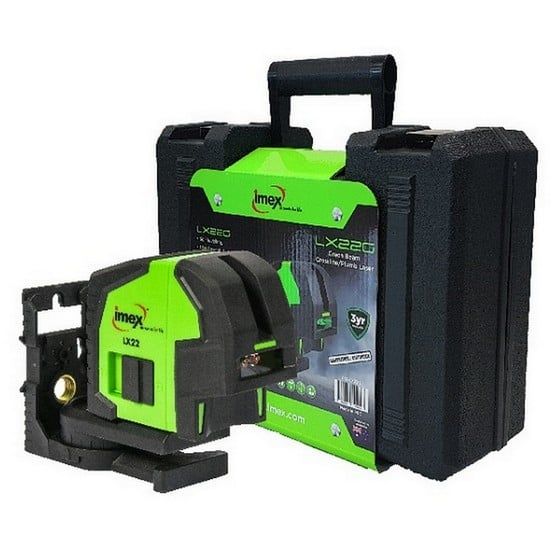

Imex LX22G Green Beam Crossline Laser with Plumb Spots and Case

The Imex LX22G is a self-levelling crossline laser with green beams from 534nm diodes, projecting one horizontal line, one vertical line and plumb spots up and down. Magnetic damping levels the laser automatically, and a lock mode holds the pendulum for marking fixed angles.

It runs on four AA batteries, has an IP54 rated housing and a working radius of 30m, and an optional detector extends use outdoors. It is supplied with a magnetic wall bracket and a hard carry case. Used for levelling and setting out walls, ceilings and fixtures where an accurate, highly visible line is required.

Specifications

Brand: Imex
Model: LX22G
Type: Crossline laser with plumb spots
Beam Colour: Green (534nm)
Lines: 1 horizontal, 1 vertical, plumb spots up and down
Working Range: 30m radius
Levelling: Self-levelling, magnetic damping, lock mode
Power: 4 x AA batteries
IP Rating: IP54
Laser Class: Class II
Unit Dimensions: 65 x 95 x 85mm
Includes: Magnetic wall bracket, hard carry case

Key Features

  • Green beam for high visibility
  • Horizontal and vertical cross lines
  • Plumb spots up and down
  • Self-levelling with magnetic damping
  • Lock mode for fixed angles
  • IP54 rated housing
  • Runs on 4 x AA batteries
  • Supplied with bracket and carry case

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
