DRA02 METAL SELF-DRIVE PLASTERBOARD FIXING [JAR OF 150]

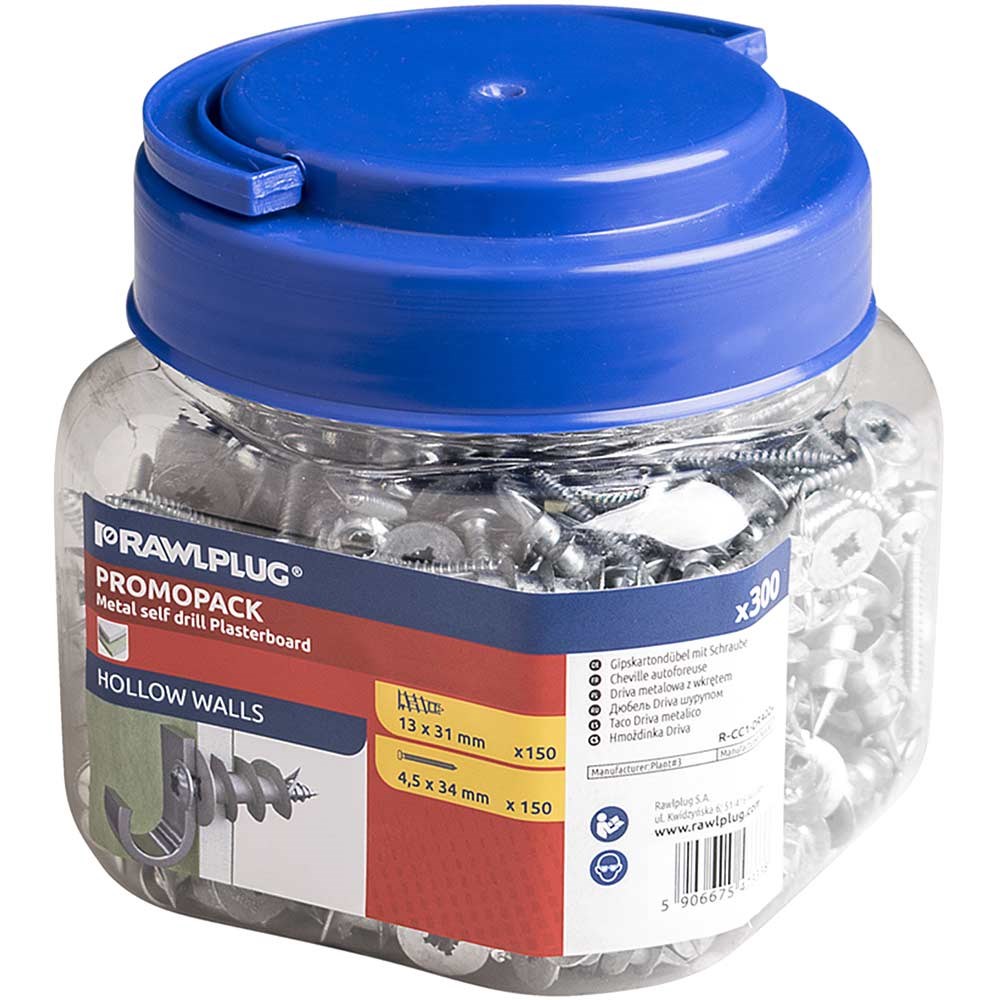

Rawlplug DRA-02 Metal Self-Drive Plasterboard Fixing, Jar of 150

The Rawlplug DRA-02 is a self-drilling metal fixing for plasterboard, supplied in a jar of 150 with matching 4.5 x 34mm screws. The fixing is driven straight through the board face with a PZ2 screwdriver bit without pre-drilling, and its flange spreads the load and stops the fixing pulling through the board. It suits single and double thickness plasterboard from 9.5mm upwards, as well as gypsum fibreboard and chipboard.

Used for hanging light fittings and mounting brackets on plasterboard partitions where a fixing that holds without a timber stud is required.

Specifications

Type: Self-drilling plasterboard fixing
Fixing Size: 13mm diameter x 31mm
Screw Supplied: 4.5 x 34mm
Drive: Pozidriv PZ2
Minimum Board Thickness: 9.5mm
Maximum Fixture Thickness: 12mm
Fixture Hole Diameter: 5mm
Minimum Spacing And Edge Distance: 35mm

Key Features

• Self-drilling, no pre-drilling needed
• Screws supplied in the jar
• Flange prevents pull-through
• Suits single and double thickness board
• Also fixes into gypsum fibreboard and chipboard
• Driven with a PZ2 bit by hand or power driver
