Dale Hardware Ball Bearing Butt Hinge 76 x 51mm
On orders over £250
Easy returns policy
Expert Advice
Call us for technical support
Dale Hardware Ball Bearing Butt Hinge 76 x 51mm
- Size: 76 x 51mm
- Leaf thickness: 2mm
- Ball bearing butt hinge
- Mild steel construction
- Supplied with matching screws

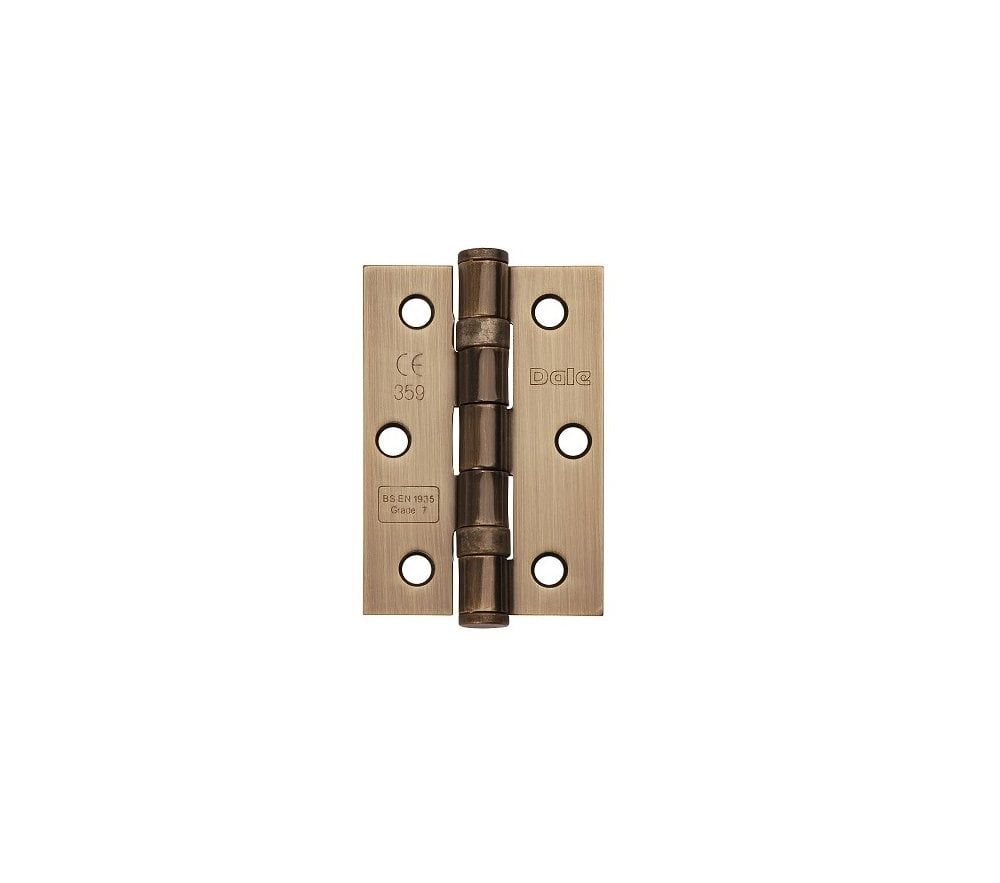

76 x 51mm Ball Bearing Butt Hinge
A mild steel ball bearing butt hinge measuring 76mm high by 51mm wide with a 2mm leaf thickness and square corners. Two ball bearing races in the knuckle carry the load and keep the swing smooth as the door ages.
The hinge is reversible and suits doors from 35 to 40mm thick, with three hinges per door carrying a tested door mass of up to 40kg. Matching 25mm pozidrive woodscrews are supplied. Used for internal light and medium weight doors and for fire doorsets where certified intumescent protection behind the blades is required.
Specifications
Type: Ball bearing butt hinge
Size: 76 x 51mm
Leaf Thickness: 2.0mm
Material: Mild steel
Bearings: 2 ball bearing races
Corners: Square
Maximum Door Mass: 40kg using 3 hinges
Door Thickness: 35 to 40mm
Supplied As: Pair with 25mm pozidrive woodscrews
Key Features
- Two ball bearing races for a smooth swing
- Mild steel with a 2mm leaf thickness
- Square corners and reversible
- Carries up to 40kg using three hinges per door
- Suits doors from 35 to 40mm thick
- Supplied in pairs with matching pozidrive screws
- Certified for use on fire doorsets with intumescent protection
