4PE Marsh Industries Ensign Gravity Fed Sewerege Treatment Plant 4 Person

Marsh Ensign Standard Sewage Treatment Plant - 4 Person

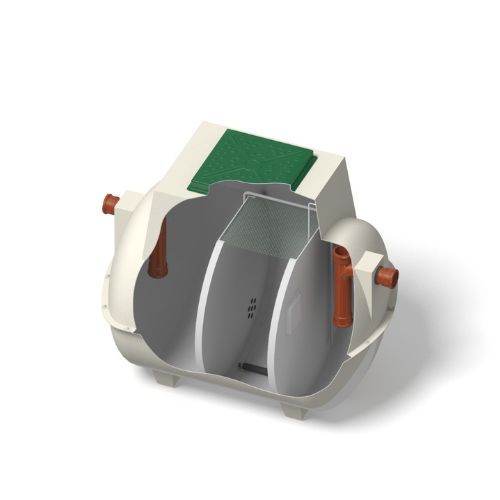

The Marsh Ensign Standard is a three-chamber package sewage treatment plant moulded in glass reinforced plastic. Wastewater passes through primary settlement, an aerated bio-media chamber and a final settlement chamber before leaving the tank under gravity. A low-energy compressor feeds membrane diffusers below the bio-media, and an integral low-pressure alarm signals any loss of air supply.

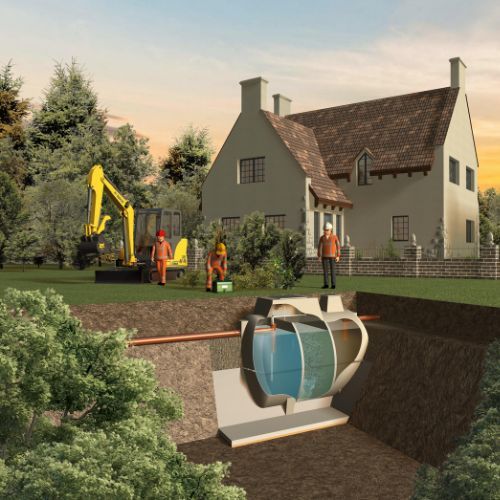

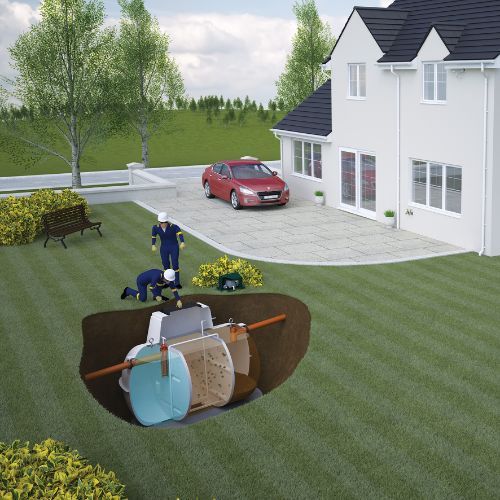

The shell is moulded from virgin unfilled resin with an isophthalic gel coat and carries integral lifting eyes, stabilising feet and a keying-in lip for anchoring into a granular or concrete surround. Inlet and outlet connections are 110mm with Forsheda seals, and a 32mm sludge return is fitted. Used for off-mains domestic dwellings and for discharge to a drainage field or watercourse where consented treated effluent quality is required.

Specifications

Type: Three-chamber aerated sewage treatment plant
Population: 4 person
Length: 1620mm
Width: 1352mm
Height: 1575mm
Inlet Invert: 540mm
Outlet Invert: 600mm
Connections: 110mm inlet and outlet
Outlet Type: Gravity
Material: Glass reinforced plastic

Key Features

• Three-chamber process with primary settlement, aeration and final settlement
• Gravity outlet supplied as standard
• Low-energy compressor with integral low-pressure alarm
• Membrane diffusers beneath the bio-media
• Stainless steel mesh retains the bio-media
• 32mm sludge return fitted
• Forsheda-sealed 110mm inlet and outlet
• Integral lifting eyes and stabilising feet
• Keying-in lip for anchoring into the surround
• Virgin unfilled resin shell with isophthalic gel coat
