10PE Marsh Industries Ensign Gravity Fed Sewerege Treatment Plant 10 Person

Marsh Ensign Gravity Sewage Treatment Plant 10 Person

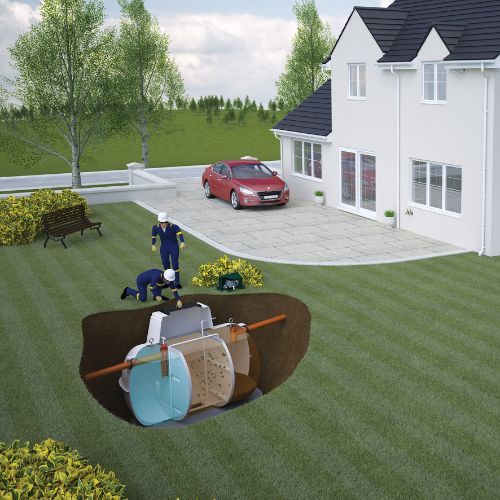

The Marsh Ensign is a gravity outlet sewage treatment plant sized for a population equivalent of 10 people. Waste enters a primary settlement chamber where anaerobic digestion takes place, and the clarified water then passes into an aeration chamber where diffused air and mobile bio-media support the aerobic bacteria that complete the treatment. Treated effluent and sloughed-off bacteria pass to a final settlement chamber before discharge to a drainage field or watercourse.

The unit has no internal moving parts. It is supplied with Forsheda flexible inlet and outlet seals, a compressor with housing that can be mounted internally or externally, a removable PVC pressure pipe and diffuser conduit for maintenance, membrane diffusers that eliminate dead spots, a 32mm sludge return that balances flow over 24 hours, an access lid, integral lifting eyes, stabilising feet and a keying-in lip for anchoring into a granular or concrete surround. Used for off-mains drainage on dwellings and for sites with restrictive percolation values where a treated discharge to a watercourse or drainage field is required.

Specifications

Type: Gravity outlet sewage treatment plant
Population Equivalent: 10 person
Length: 2602mm
Width: 1650mm
Height: 1935mm
Inlet Invert: 550mm
Inlet Diameter: 110mm
Outlet Invert: 625mm
Outlet Diameter: 110mm
Discharge: Drainage field or watercourse
Sludge Return: 32mm
Desludge Interval: Annually or per manufacturer instructions

Key Features

• Three-chamber treatment process
• No internal moving parts
• Gravity outlet as standard, pumped outlet available
• Compressor housing can be internal or external
• Forsheda flexible inlet and outlet seals
• Membrane diffusers eliminate dead spots
• 32mm sludge return balances flow over 24 hours
• Integral lifting eyes and stabilising feet
• Keying-in lip for a granular or concrete surround
• Discharges to a drainage field or watercourse
