Timco Wing Tip Screws 5.5 x 85mm Box of 100

Timco Wing Tip Screws 5.5 x 85mm Box of 100
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Size: 5.5 x 85mm
  • Box of 100
  • Timber to light section steel
  • Steel up to 5mm
  • Zinc finish
£21.77
per Each inc VAT
In Stock
Unable to load stock information

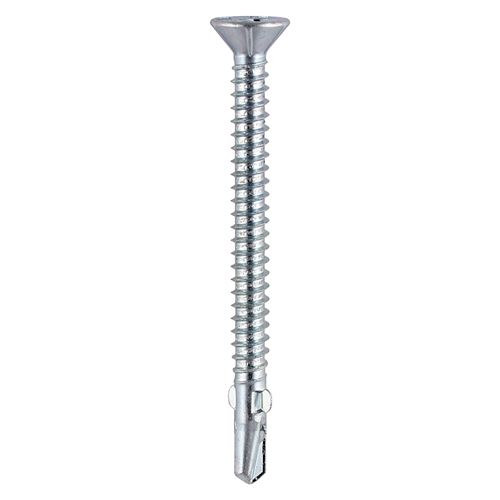

Timco Wing Tip Self Drilling Screws - 5.5 x 85mm Box of 100

Timco wing tip self drilling screws for fixing timber to light section steel up to 5mm thick, 5.5 x 85mm and supplied in a box of 100. They are made from case and core hardened carbon steel with a zinc finish, a ribbed countersunk head and a Phillips PH3 recess, and suit timber from 44 to 63mm thick.

The wings ream out the timber ahead of the thread, then break off when they hit the metal so the thread can self tap into the steel. The No.3 self drilling point removes the need for pre-drilling, and a PH3 bit is included in the box. Used for fixing timber battens and joists to light section steel where a self drilling timber to steel fixing is required.

Specifications

Brand: Timco
Type: Light section wing tip self drilling screw
Size: 5.5 x 85mm
Effective Thread Length: 61mm
Steel Thickness: Up to 5mm
Timber Thickness: 44 to 63mm
Point: Self drilling No.3
Head: Countersunk with ribs
Drive: Phillips PH3
Material: Case and core hardened carbon steel
Finish: Zinc
Quantity: 100

Key Features

  • Fixes timber to light section steel
  • Drills steel up to 5mm thick
  • Suits timber 44 to 63mm thick
  • Wings ream timber then break off
  • No.3 self drilling point, no pre-drilling
  • Ribbed countersunk Phillips PH3 head
  • Case and core hardened carbon steel
  • Box of 100 with PH3 bit

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
