Timco Wing Tip Self-Drilling Screw 5.5 x 50mm

Timco Wing Tip Self-Drilling Screw 5.5 x 50mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Size: 5.5 x 50mm
  • Wing tip self-drilling screw
  • Drills steel up to 5mm
  • Countersunk ribbed PH3 head
  • Zinc finish
£22.82
per Each inc VAT
In Stock(Only 9 left)
Unable to load stock information

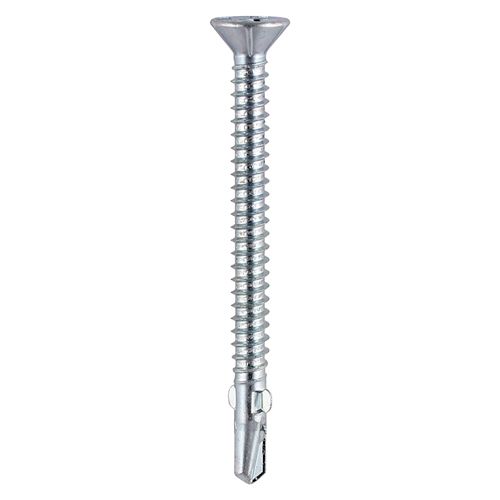

Timco Wing Tip Self-Drilling Screws - 5.5 x 50mm Zinc

Wing tip self-drilling screws for fixing timber to light section steel up to 5mm thick without pre-drilling. Each screw is made from case and core hardened carbon steel with a zinc finish, and has a countersunk head with ribs, a No.3 self-drilling point and a coarse self-tapping thread.

The wings ream out the timber so the screw can run at full speed without burning out, then break off on contact with the metal so the thread can tap into the steel. The zinc finish carries a corrosion rating of 1, for clean, dry and low humidity environments. Used for timber-to-steel fixing and light section steel framing where drilling without a pilot hole is required.

Specifications

Type: Wing tip self-drilling screw
Size: 5.5 x 50mm
Thread Diameter: 5.5mm
Length: 50mm
Effective Thread Length: 26mm
Head Type: Countersunk with ribs
Drive: Phillips PH3
Point: No.3 self-drilling
Material: Case and core hardened carbon steel
Finish: Zinc
Max Steel Thickness: 5mm
Timber Thickness: 19-28mm

Key Features

  • Wings ream out the timber then break off at the steel
  • Drills light section steel up to 5mm thick
  • No.3 self-drilling point removes the need for pre-drilling
  • Countersunk head with ribs for a flush finish
  • Coarse self-tapping thread
  • Case and core hardened carbon steel
  • Zinc finish for clean, dry, low humidity conditions
  • PH3 driver bit included

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
