Timloc Roll Out Dry Fix Ridge Kit 6m Black

Timloc Roll Out Dry Fix Ridge Kit - 6m Black

The Timloc 6m Roll Out Dry Fix Ridge Kit is a mortar-free ridge system supplied as a complete pack for one ridge length of up to 6m. It combines a water-resistant, air-permeable vent roll with self-adhesive aluminium flashing, black polypropylene ridge unions and clips, preassembled stainless steel fixing screws with clamping plates and galvanised steel ridge batten straps.

The kit fits most slate, concrete and clay roof tiles with round or angled ridge tiles on pitches from 15 to 55 degrees, on new build and retrofit roofs. It gives 5000mm2/m of ridge ventilation, equivalent to a 5mm continuous gap, protects against wind uplift and water ingress, and helps keep out large insects, birds and vermin. Used for new build and retrofit pitched roofs where mechanically fixed, ventilated ridge protection is required.

Specifications

Type: Roll out dry fix ridge kit
Length: 6m
Colour: Black
Ventilation: 5000mm2/m (equivalent to 5mm continuous gap)
Roof Pitch: 15 to 55 degrees
Ridge Union Width: 55mm
Ridge Tile Thickness: Up to 30mm
Compatibility: Most slate, concrete and clay roof tiles; round or angled ridge tiles
Material: Polypropylene unions and clips, stainless steel screws and clamping plates, galvanised steel batten straps, aluminium flashing

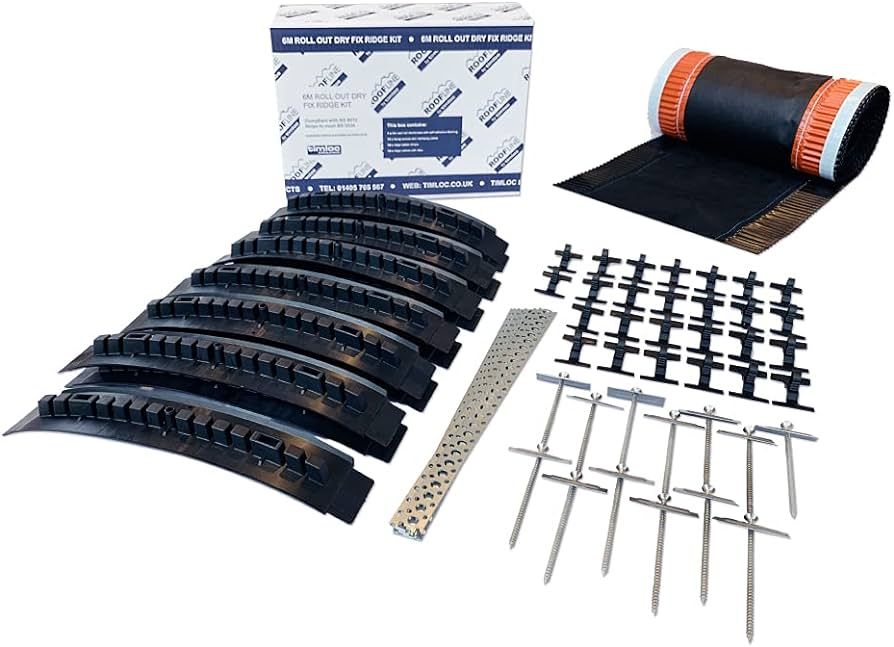

Contents: 1 x 6m vent roll with self-adhesive flashing, 13 x fixing screws and clamping plates, 13 x ridge unions, 26 x ridge union clips, 10 x ridge batten straps

Key Features

• Mortar-free dry fix ridge installation
• 5000mm2/m continuous ridge ventilation
• For roof pitches from 15 to 55 degrees
• Preassembled fixing screws and clamping plates
• Ridge unions with adjustable clip positions
• 55mm wide union adds water bar protection
• Protects against wind uplift and water ingress
• Helps keep out birds, insects and vermin
• Not affected by building settlement
• Sequential packs can be installed on longer ridges
