Rawlplug R-STUDS Threaded Studs M12 x 160mm Pack 5
- Thread: M12
- Length: 160mm
- Class 5.8 steel
- Nut and washer included
- For chemical anchor fixings
Rawlplug R-STUDS Threaded Studs - M12 x 160mm, Pack of 5

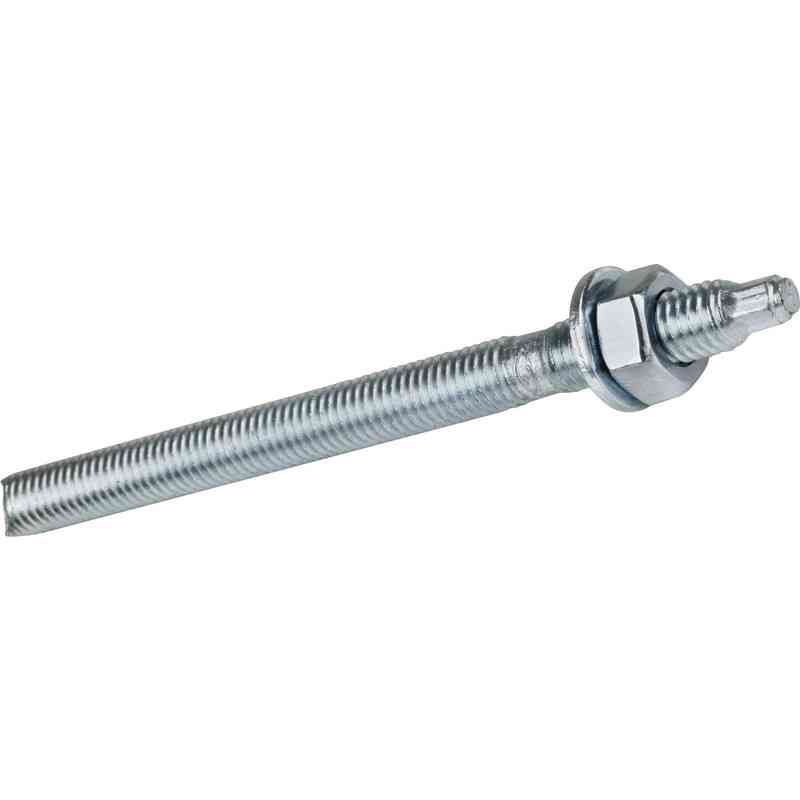

Rawlplug R-STUDS M12 x 160mm threaded studs are class 5.8 steel rods for use with Rawlplug bonded (chemical) anchors. Each stud has a hexagonal head for installation with a torque wrench and is supplied complete with the correct size nut and washer, which prevents incorrect nuts being used.
The angled cut at the bottom of the stud lets the resin spiral up the length of the rod and stops air being trapped at the base of the hole. Used for resin anchoring into concrete and masonry and fixing barriers, railings and steel structures where a high load-bearing bonded anchor is required.
Specifications
Brand: Rawlplug
Type: Threaded stud for resin anchors
Thread: M12
Length: 160mm
Steel Class: 5.8
Finish: Zinc plated
Head: Hexagonal
Included: Nut and washer per stud
Quantity: 5 studs
Key Features
- Class 5.8 steel threaded stud
- Hexagonal head for torque wrench use
- Supplied with matching nut and washer
- Angled cut tip for even resin flow
- Prevents trapped air in the hole
- For use with Rawlplug chemical anchors
- Pack of 5
