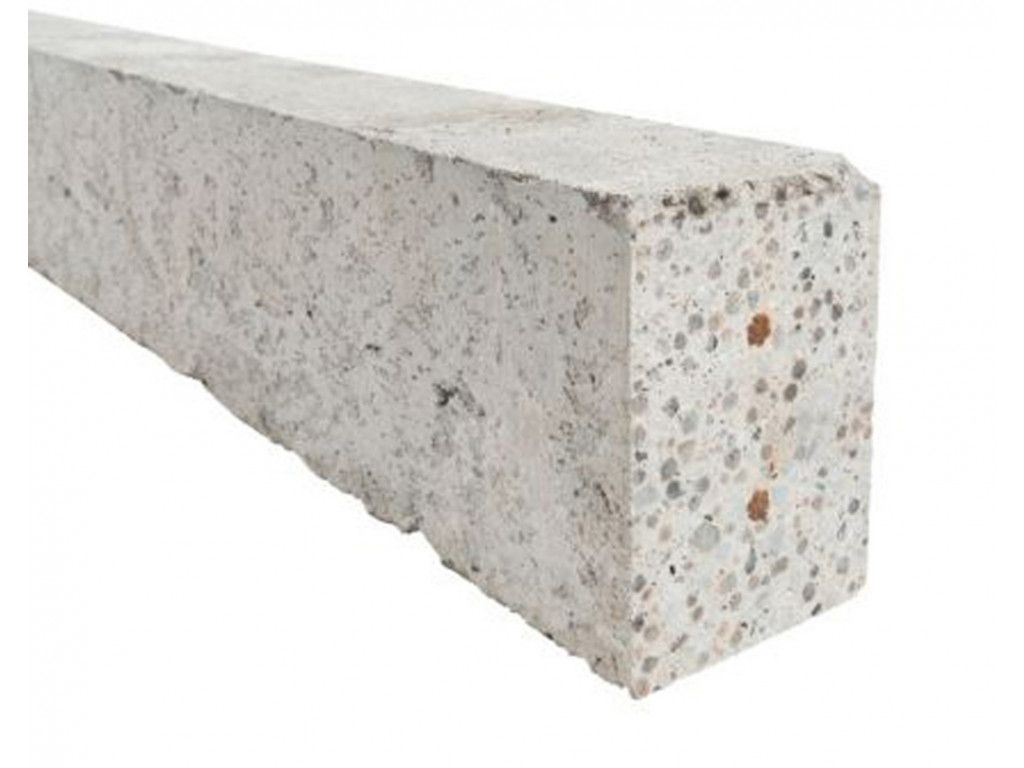

Prestressed Concrete Lintel 3000 X 140 X 100mm

FP McCann Prestressed Concrete Lintel - 3000 x 140 x 100mm

This prestressed concrete lintel measures 3000mm long, 140mm wide and 100mm high. It provides low cost, resilient masonry support over wider door and window openings, and is reversible for straightforward installation in internal partitions, external cavity walls, garages and over services.

The lintel is designed to support masonry loads, uniformly distributed timber floor, roof and concrete floor loads, attic truss loads and point loads from compound trusses or steel beams, and needs a sound bearing of at least 150mm at each end. Used for door openings and window openings where a prestressed concrete masonry support is required.

Specifications

Type: Prestressed concrete lintel
Brand: FP McCann
Length: 3000mm
Width: 140mm
Height: 100mm
Material: Concrete
Minimum End Bearing: 150mm

Key Features

• Prestressed concrete construction
• Reversible for simple installation
• 3000mm length for wider openings
• Supports masonry and uniformly distributed floor and roof loads
• Also designed for attic truss and point loads
• For internal partitions, cavity walls, garages and over services
• Minimum 150mm bearing at each end
