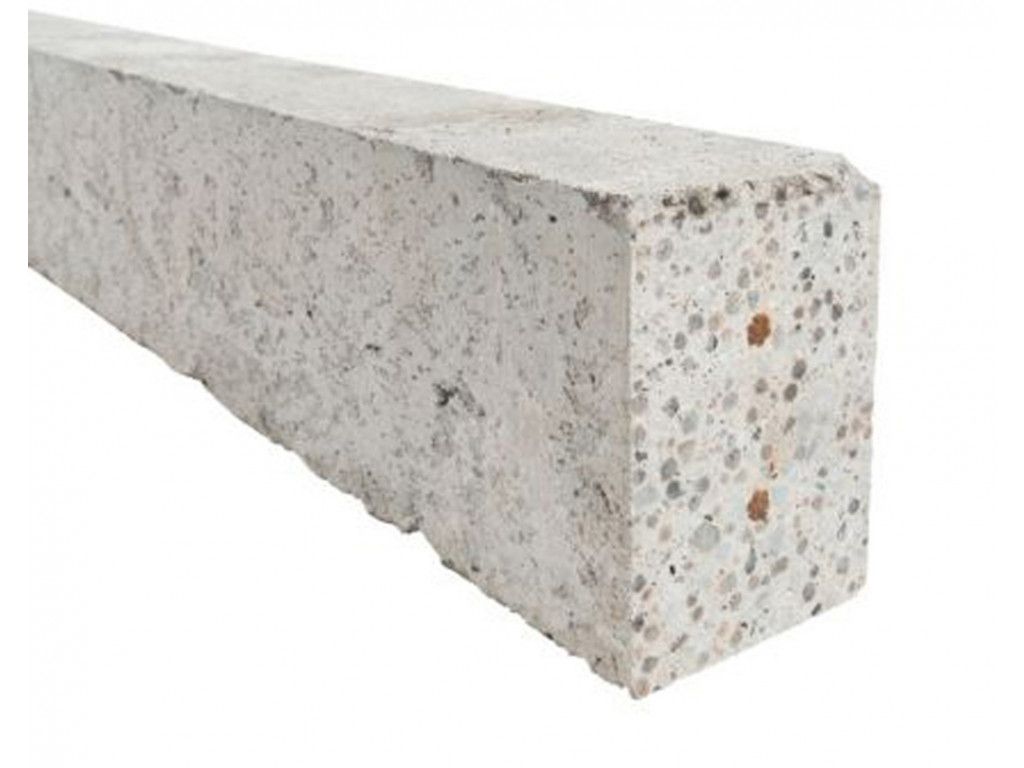

Prestressed Concrete Lintel 2400 X 140 X 100mm

FP McCann Prestressed Concrete Lintel - 2400 x 140 x 100mm

This prestressed concrete lintel measures 2400mm long, 140mm wide and 100mm high. It provides low cost, resilient masonry support over door and window openings, and is reversible for straightforward installation in internal partitions, external cavity walls, garages and over services.

The prestressed casting process gives a smooth finish for safer manual handling. The lintel is designed to support masonry loads, uniformly distributed timber floor, roof and concrete floor loads, attic truss loads and point loads, and needs a sound bearing of at least 150mm at each end. Used for door openings and window openings where a prestressed concrete masonry support is required.

Specifications

Type: Prestressed concrete lintel
Brand: FP McCann
Length: 2400mm
Width: 140mm
Height: 100mm
Material: Concrete
Finish: Smooth
Weight: 81kg
Minimum End Bearing: 150mm

Key Features

• Prestressed concrete construction
• Reversible for simple installation
• Smooth finish for safer handling
• Supports masonry and uniformly distributed floor and roof loads
• Also designed for attic truss and point loads
• For internal partitions, cavity walls, garages and over services
• Minimum 150mm bearing at each end
