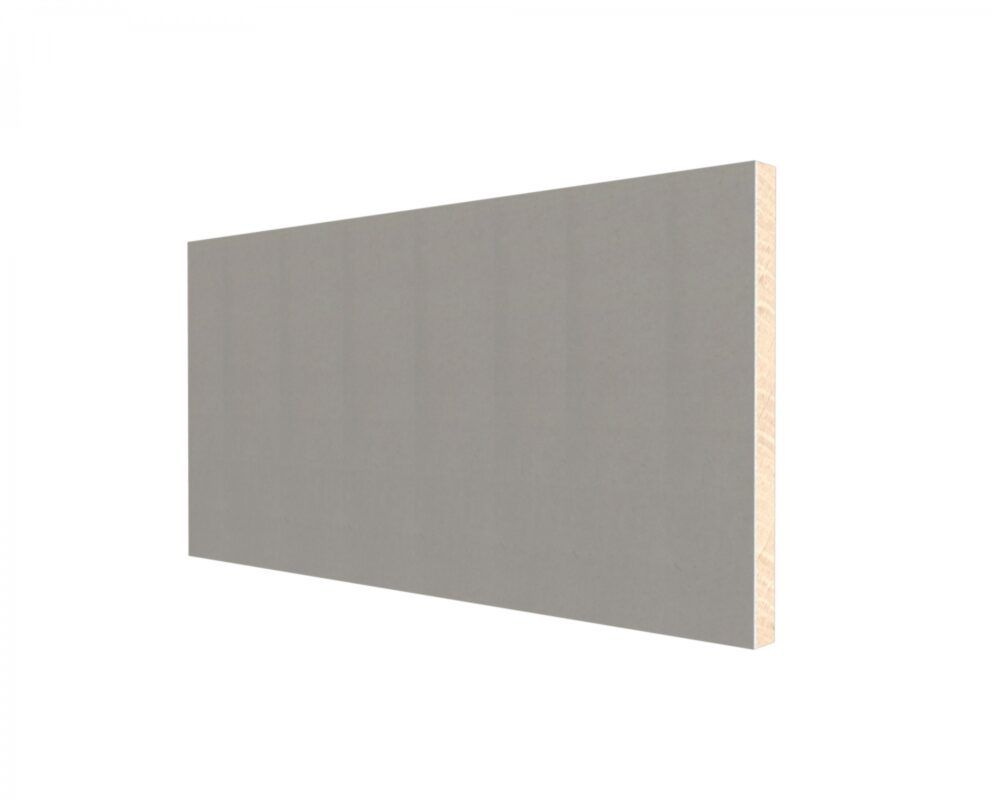

Mannok Therm Laminated Plasterboard 2400x1200mm 50.5mm Finished Thickness

Mannok Therm Laminate Insulated Plasterboard - 2400 x 1200mm, 50.5mm

Mannok Therm Laminate is a fibre-free insulated plasterboard made from a 38mm PIR insulation core with 12.5mm plasterboard bonded to one face and a kraft paper facing on the other, giving a finished thickness of 50.5mm. Each 2400 x 1200mm board covers 2.88m2 and allows insulation and the internal finish to be installed in one operation.

The board is used for dry-lining cavity and solid walls and for insulating under rafters in pitched roofs, reducing heat loss and thermal bridging through the rafters. It can be fixed with dot-and-dab adhesive or mechanical fixings. Used for dry-lining external walls and pitched roofs where insulation and a plasterboard finish in one board is required.

Specifications

Type: PIR insulated plasterboard
Size: 2400 x 1200mm
Finished Thickness: 50.5mm
Insulation: 38mm PIR
Plasterboard: 12.5mm
Facing: Kraft paper to insulation side
Thermal Conductivity: 0.022 W/mK
Coverage: 2.88m2 per board
Application: Walls and under rafters

Key Features

• Insulation and internal finish in one operation
• PIR core with 0.022 W/mK thermal conductivity
• Fibre free
• Fixed by dot-and-dab adhesive or mechanical fixings
• For cavity and solid wall dry-lining
• For under-rafter insulation in pitched roofs
• Reduces thermal bridging through rafters
• Zero ozone depletion potential
