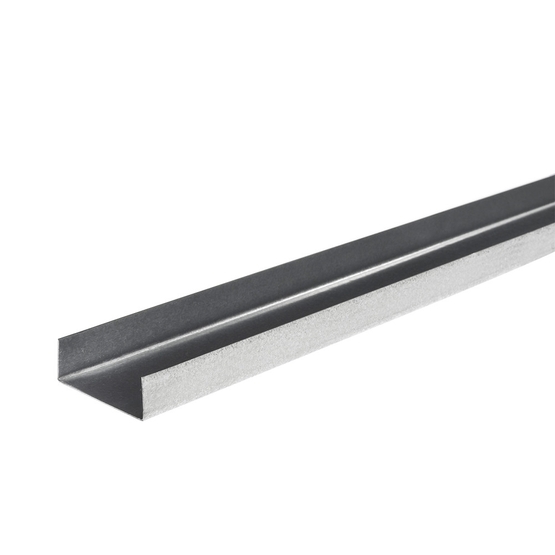

LIBRA FTD52 52mm Deep Track 3000mm

Libra FTD52 52mm Deep Track - 3000mm

The Libra FTD52 is a 52mm deep track rolled from hot dip galvanised steel and supplied in a 3000mm length. It forms the head and floor channel of a metal stud partition, and the 50mm legs are deeper than those of a standard track so the stud is gripped further up the section.

That extra leg depth allows more movement to be taken up within the partition, which is why Libra specifies deep track for partition heights above 4200mm and up to 8000mm. The 52mm web takes a 50mm stud. Used for tall drywall partitions and for shaft and encasement linings where extra deflection allowance at the head is required.

Specifications

Type: Metal deep track
Length: 3000mm
Web Width: 52mm
Legs: 50mm
Profile: 50 x 52 x 50mm
Material: Cold rolled hot dip galvanised steel
Stud Size: 50mm
Partition Height: Above 4200mm and up to 8000mm

Key Features

• 50mm legs grip the stud further up the section
• Specified by Libra for partition heights above 4200mm and up to 8000mm
• Allows deflection to be taken up within the partition
• Cold rolled from hot dip galvanised steel
• 3000mm length
• 52mm web takes a 50mm stud
• Used at both head and floor
