Libra Fi50 50mm I Stud 3000mm

Libra FI50 50mm I Stud - 3000mm

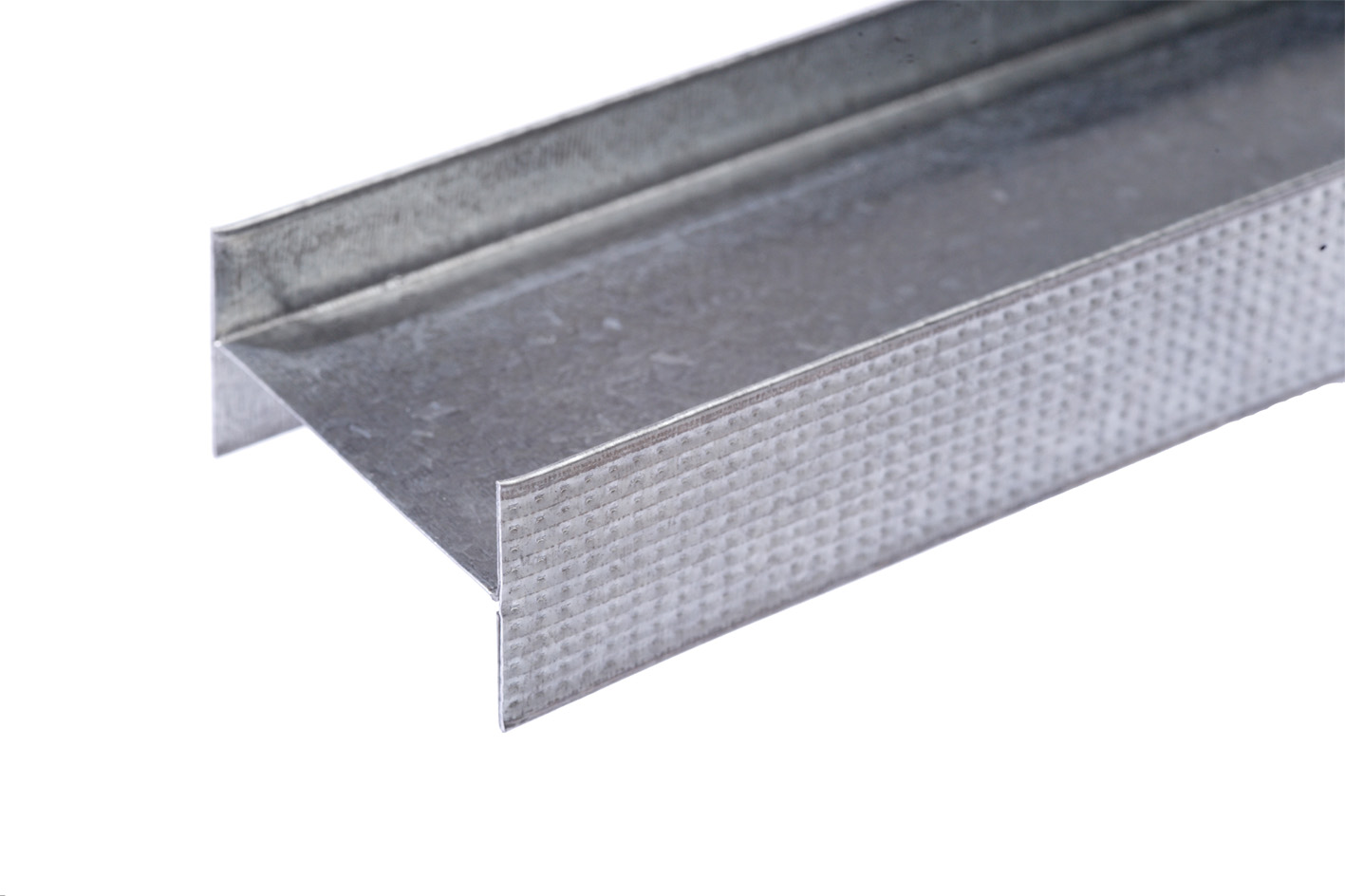

The Libra FI50 is a 50mm I stud rolled from galvanised steel and supplied in a 3000mm length. The I section places a flange on each side of a 50mm web, giving a stiffer vertical member than an open C stud and allowing board to be fixed to both faces without packing.

Both faces are knurled so drywall screws bite rather than skating across the steel. The stud sits inside a 52mm track at head and floor. Used for non-load-bearing internal partitions and for wall linings where a rigid vertical member with a positive screw fixing is required.

Specifications

Type: Metal I stud
Length: 3000mm
Web Width: 50mm
Flange: 38mm each side
Profile: 38 x 50 x 38mm
Material: Cold rolled hot dip galvanised steel
Finish: Knurled both faces
Pairs With: 52mm head and floor track

Key Features

• I section with a flange to each side of the web
• Knurled on both faces so drywall screws do not skate
• Cold rolled from hot dip galvanised steel
• 3000mm length
• Web width of 50mm with 38mm flanges
• Fits a 52mm head and floor track
• For non-load-bearing partitions and wall linings
