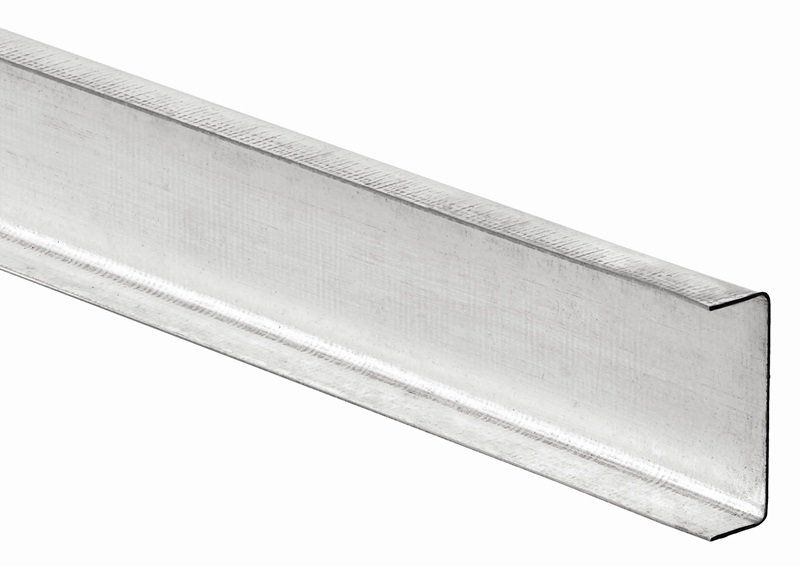

Libra FF30 Primary Channel 15x45x15mm 3600mm

Libra FF30 Primary Channel - 15 x 45 x 15mm, 3600mm

The Libra FF30 is a 3600mm primary channel with a 15 x 45 x 15mm profile, forming the main suspended runners of the Libra metal furring (MF) ceiling system for internal drylining with gypsum-based plasterboard. The channels hang from Libra 182 angle hangers, each fixed with two wafer head jack-point screws.

Runs are extended with a 300mm offcut overlapping each side by 150mm and secured with two wafer head jack-point screws per side, and FF10 furring channels are then fixed to the underside. Used for suspended plasterboard ceilings and internal drylining where a metal furring grid is required.

Specifications

Type: Primary channel
Profile: 15 x 45 x 15mm
Length: 3600mm
System: Libra MF metal furring ceiling
Application: Suspended plasterboard ceilings

Key Features

• 3600mm length
• 15 x 45 x 15mm channel profile
• Main runner of the Libra MF ceiling
• Hangs from Libra 182 angle hangers
• Extended with 150mm overlapping offcuts
• FF10 furring channels fix to the underside
