Cavity Trays 90 Degree Internal Corner Tray

Cavity Trays 90 Degree Internal Corner Tray
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Internal corner cavity tray
  • Cavity width: 50-140mm
  • Black polypropylene DPC
  • Interlocks with adjoining trays
  • For remedial damp-proofing
£25.22
per Each inc VAT
In Stock
Unable to load stock information

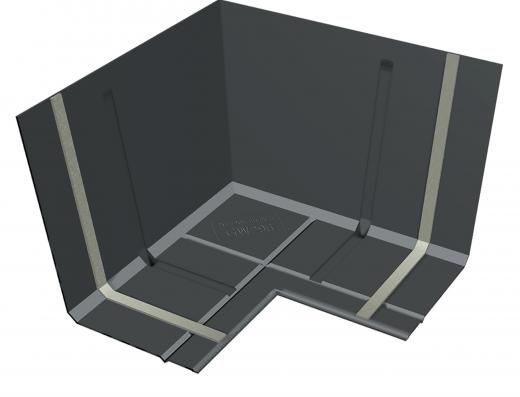

Cavity Trays Horizontal 90 Degree Internal Corner Cavity Tray

This Cavity Trays horizontal 90 degree internal corner tray is a preformed polypropylene DPC angle for the Type E system, which is inserted into an existing cavity wall from outside without disturbing the inner masonry skin. A hinged upstand adjusts to cavity widths from 50mm to 140mm.

Integral preformed stop ends give each unit its own collection area, collected water discharges through a weep, and interlocking upstands join adjoining trays into long runs. Used for extension intersections and remedial damp-proofing where arrestment of penetrating water is required.

Specifications

Brand: Cavity Trays
Type: Horizontal 90 degree internal corner cavity tray
Material: Polypropylene DPC
Colour: Black
Cavity Width: 50-140mm
Application: Insertion into an existing cavity wall

Key Features

  • Preformed 90 degree internal angle
  • Black polypropylene DPC
  • Hinged upstand suits 50-140mm cavities
  • Integral preformed stop ends
  • Interlocks with adjoining trays
  • Discharges collected water via a weep
  • Fitted from outside the building

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
