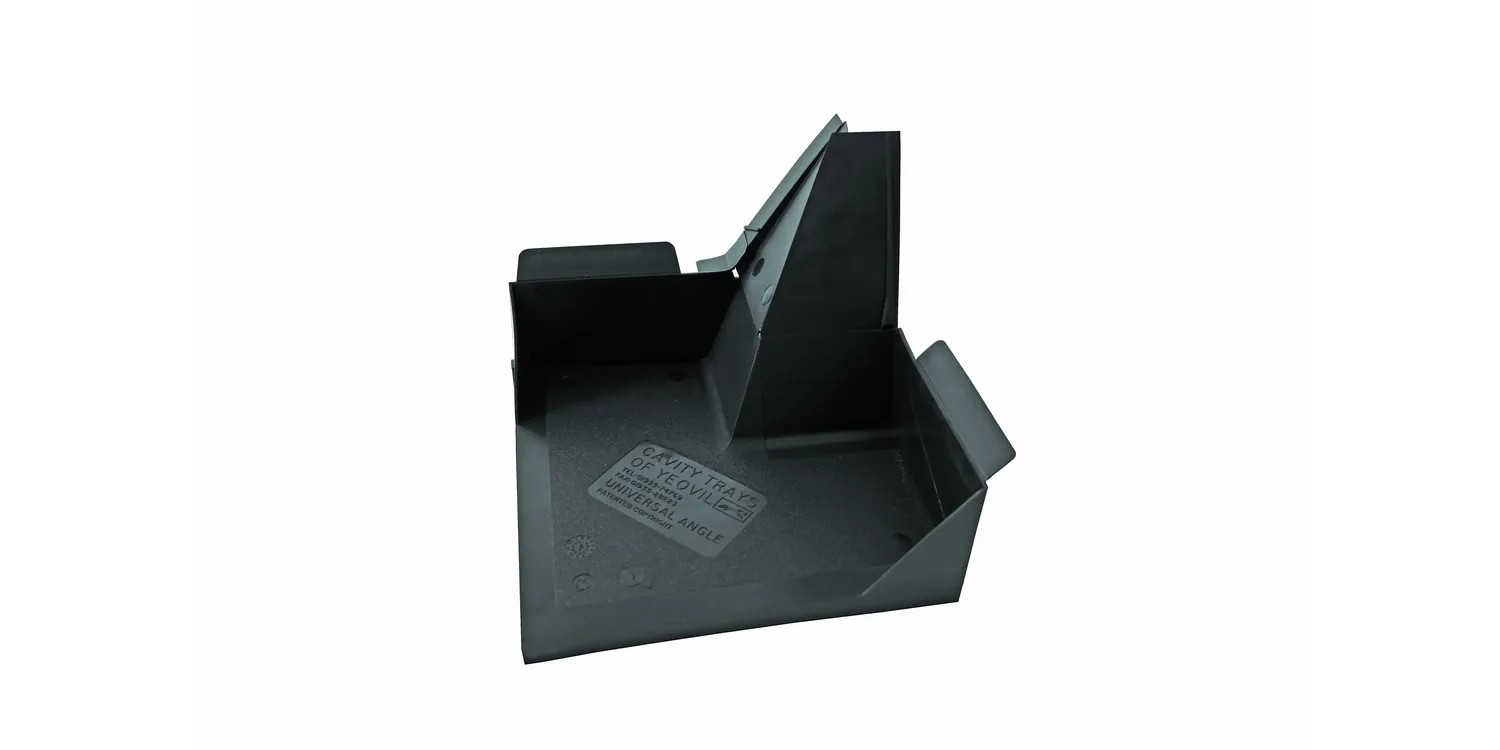

Type E Horizontal 90 Degree External Corner Cavitray 220 x 220mm

This Type E horizontal 90 degree external corner cavitray is a retrofit DPC unit for insertion into an existing wall at an external corner. It is formed in polypropylene DPC and accommodates cavity widths from 50mm to 140mm.

The tray is used at extension intersections and remedial damp-proofing locations to arrest penetrating water. Used for extension intersections and remedial damp-proofing where arrestment of penetrating water is required.

Specifications

Length: 220mm
Width: 220mm
Type: Type E horizontal 90 degree external corner cavitray
Application: Insertion into an existing cavity wall at extension intersections and remedial damp-proofing

Key Features

• For insertion into an existing wall
• 220 x 220mm universal external angle
• For 50mm to 140mm cavity widths
• Polypropylene DPC material
• Retrofit and remedial application
• Water evacuation via Caviweeps in perp joints
