Expamet Timber Frame Tie 100mm Cavity
- Cavity width: 100-120mm
- Stainless steel frame tie
- Up to 24mm vertical movement
- Ring shank nails supplied
- For timber frame construction

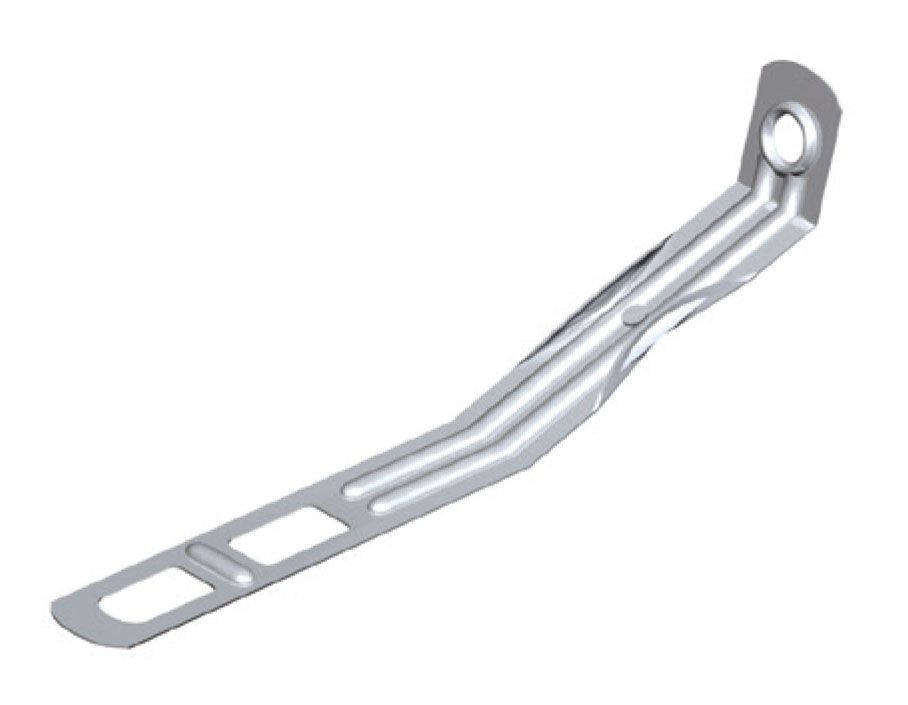

Expamet Stainless Steel Timber Frame Tie - 100mm Cavity
The Expamet timber frame tie connects a masonry outer leaf to a timber frame inner leaf across a 100-120mm cavity. It is made from high tensile, corrosion resistant stainless steel in a mill finish and allows up to 24mm of vertical movement between the masonry and the frame.
Each tie is fixed through the sheathing into the structural studs with the 3.35 x 50mm A2 stainless steel annular ring shank nails supplied, then bedded and covered in fresh mortar in a 10-12mm bed joint before the next course is laid. Ties are installed at not less than 4.4 per square metre. Used for brick and block outer leaves and timber frame construction where accommodation of vertical movement is required.
Specifications
Brand: Expamet
Type: Timber frame tie
Material: Stainless steel
Finish: Mill finish
Cavity Width: 100-120mm
Vertical Movement: Up to 24mm
Fixings: 3.35 x 50mm annular ring shank nails supplied
Fixing Hole: 4mm
Bed Joint: 10-12mm
Key Features
- High tensile stainless steel
- Corrosion resistant mill finish
- For 100-120mm cavities
- Allows up to 24mm vertical movement
- Supplied with A2 stainless ring shank nails
- Fixes through sheathing into studs
- 4mm fixing hole
- Installed at not less than 4.4 per square metre
