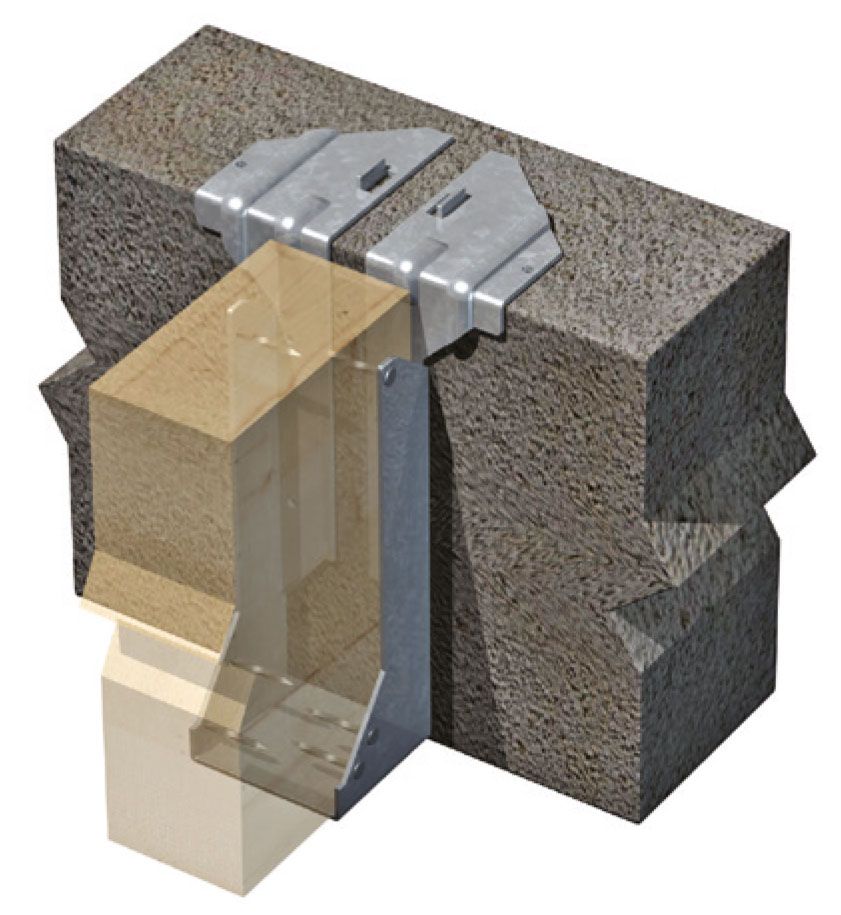

Expamet Sph STD Joist Hanger 225 x 47mm (SPHS22547)

The Expamet Sph STD Joist Hanger is an essential building component designed to offer sturdy support for timber beams, joists, and trussed rafters in both residential and commercial projects. Constructed from pre-galvanised steel, this robust joist hanger minimises movement of joists and facilitates straightforward installation, making it suitable for both professional tradespeople and DIY enthusiasts. Its reliable construction ensures stability throughout the project lifecycle.

With a load-bearing capacity of 5kN SWL (SLS), the Expamet joist hanger is built to handle significant loads, ensuring structural integrity. The galvanised mild steel material, combined with a zinc coating of 600g/m², enhances resistance to corrosion, making it appropriate for various construction environments, including renovation and new build applications.

Specifications

Weight: 12.7 kg
Material Gauge: 2.0mm
Length/Projection: 75mm Shoe, 75mm Flange
Length/Height: 215mm
Joist Width: 47mm
Material: Galvanized Mild Steel DX51D+Z600 to EN10346:2015
Fire Rating: Euroclass A1
Declared Loadbearing Capacity: 5kN SWL (SLS)

Key Features

• Made from pre-galvanised steel for long-lasting durability.
• Suitable for use with timber beams, joists, and trussed rafters.
• Proven load-bearing capacity of 5kN SWL.
• 600g/m² zinc coating enhances corrosion protection.
• Euroclass A1 fire rating for increased safety during use.
• Allows for easy installation, including shot firing to steel girders.
• Designed for adaptability in a range of construction applications.
• Performance is consistent for both professional contractors and experienced DIY users.
