Expamet Sph STD Joist Hanger 175 x 47mm (SPHS17547)

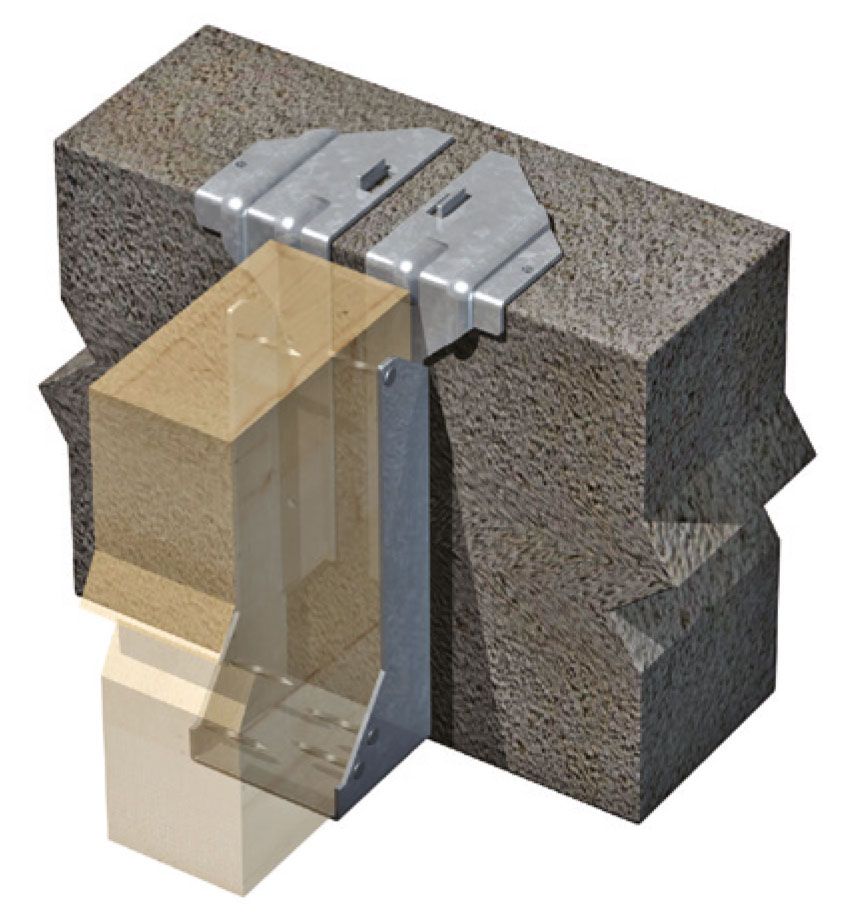

This Expamet Sph STD Joist Hanger is a reliable masonry (built-in) solution specifically designed to support timber beams and joists directly from masonry walls. Made from pre-galvanised mild steel, it delivers strong support ideal for both experienced builders and DIY enthusiasts. Its innovative design effectively limits movement, ensuring that joists remain stable across various structural applications.

Installation is simplified due to its single piece construction, eliminating the need for mechanical fixings in masonry. This feature makes it particularly user-friendly for DIY projects while meeting the practical demands of professional construction. The robust material and craftsmanship make it a trusted choice for diverse building needs.

Specifications

Material: Galvanized Mild Steel DX51D+Z600 to EN10346:2015
Material Gauge: 2.0mm
Length Projection: 75mm Shoe, 75mm Flange
Joist Width: 47mm
Joist Height: 175mm
Fire Rating: Euroclass A1

Key Features

• Single piece, non-welded construction for enhanced durability
• Non-coaxial fixing holes facilitate precise installation
• 600g/m² galvanised coating for strong corrosion resistance
• Compatible with joists 150mm and above, 10mm less for notching/regularisation
• Designed for easy installation with no mechanical fixings required
• Options available for various joist widths (38mm to 150mm) and heights (100-275mm in 25mm increments)
• Return and straddle options for versatile use
