Expamet Sph STD Joist Hanger 100 x 47mm (SPHS10047)

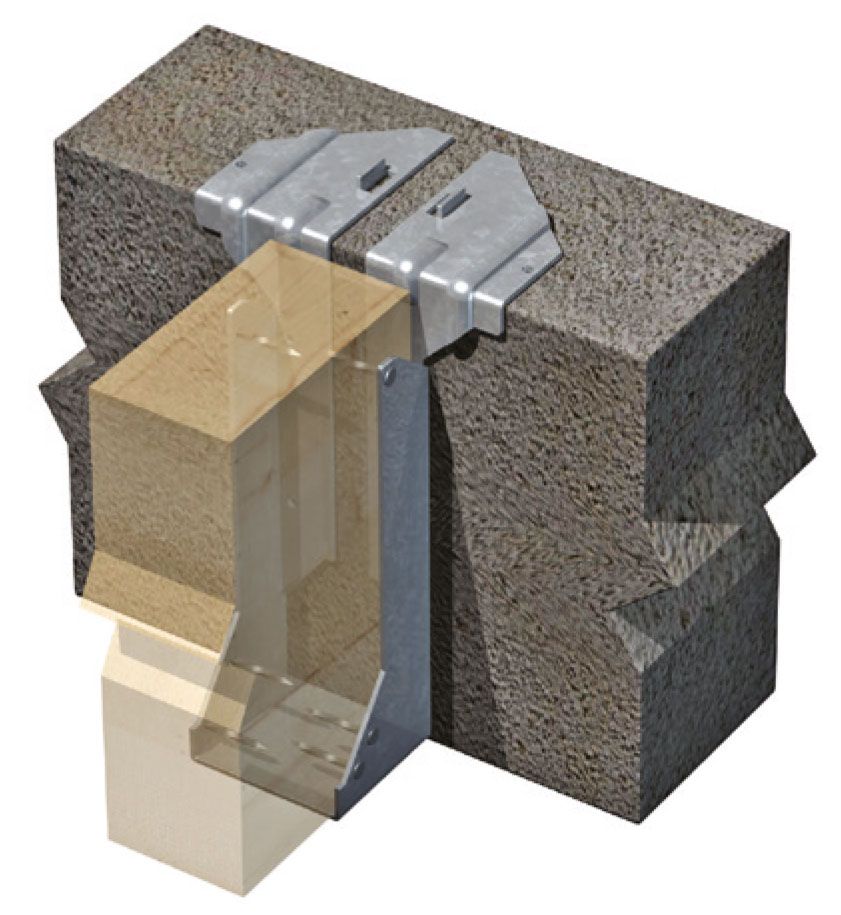

This Expamet Sph STD Joist Hanger, measuring 100mm x 47mm, is a robust masonry (built-in) single piece hanger crafted from pre-galvanised mild steel. It is designed for the secure support of timber beams, joists, and trussed rafters against masonry walls, making it suitable for both professional contractors and competent DIY enthusiasts. The reliability of this product lies in its capacity to resist joist movement and can be easily attached with 3.75x30 square twisted nails, ensuring effective load distribution and structural integrity.

The joist hanger features a straightforward installation process, eliminating the need for mechanical fixings to walls when certain installation criteria are followed, such as ensuring the back of the hanger is tight against the wall and that joists are cut square. This versatility makes it an ideal choice for various building applications, allowing both trade professionals and DIYers to complete projects efficiently.

Specifications

Length: 190mm
Width: 47mm Joist Width
Material: Galvanized Mild Steel DX51D+Z600
Material Gauge: 2.0mm
Weight: 0.446kg
Declared Loadbearing Capacity: 5kN SWL (SLS)
Fire Rating: Euroclass A1
Coating/Finish: 600g/m² Zinc Coating

Key Features

• Single piece, non-welded construction for increased strength.
• Non-coaxial fixing holes allow for easier installation.
• Durable 600g/m² galvanised coating for corrosion resistance.
• Manufactured 10mm less to facilitate joist notching and regularisation.
• Built-in fixing for quick and efficient assembly without mechanical fixings.
• Suitable for use in a variety of building applications, ensuring versatility.
• Compliant with industry standards for improved safety and reliability.
• Lightweight design minimises delivery and handling costs.
• Fire-rated up to Euroclass A1, enhancing building safety.
