Expamet Safe End Frame Cramp 200mm with Holes

Expamet Safe End Frame Cramp - 200mm Projection with Holes

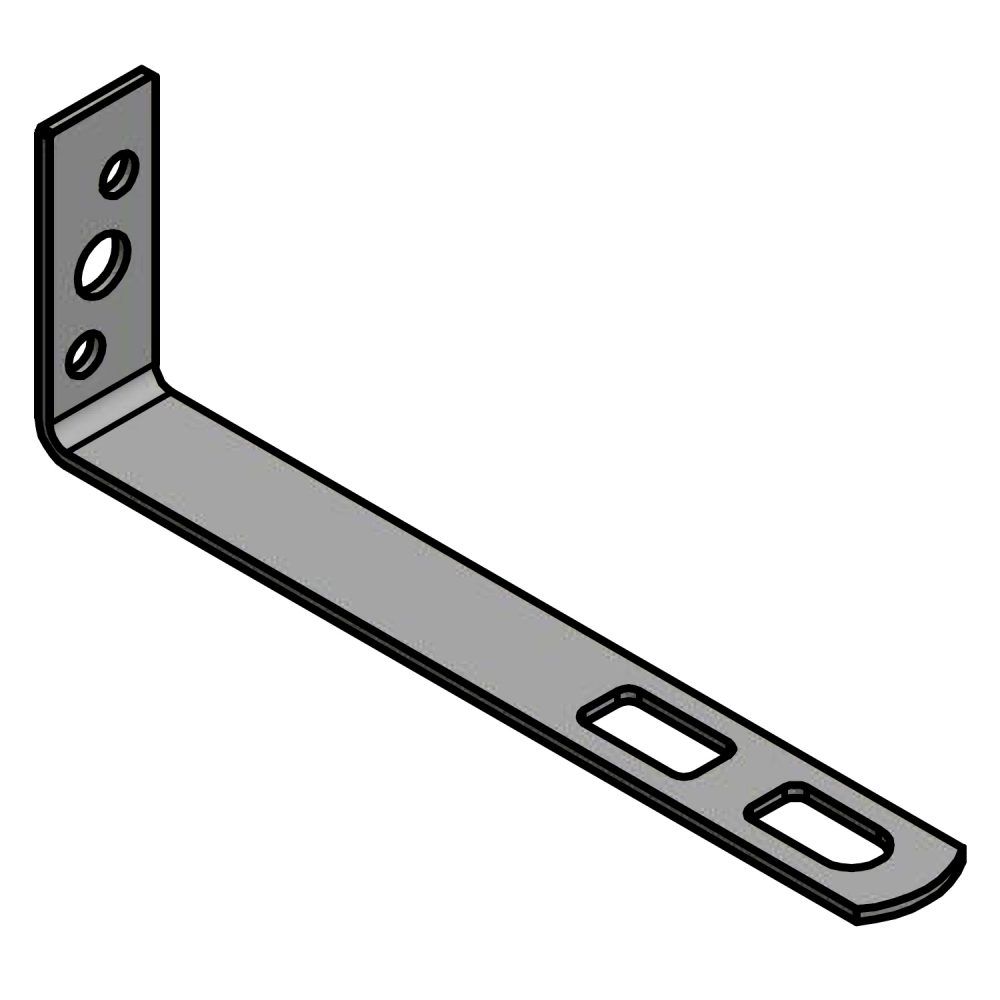

The Expamet safe end frame cramp is a stainless steel fixing for tying timber window and door frames into masonry. It has a 200mm projection, a 50mm upstand and a 19mm wing width in 2.0mm gauge, with pre-punched holes for fixing to the frame and a curved safety end to help prevent injury on site.

The cramp is built into a 10-12mm mortar bed joint with a minimum design embedment of 62.5mm, and fixings up to M8 are chosen to suit the substrate. It is bedded and covered in fresh mortar before the next course is laid. Used for fixing window and door frames into brick and block openings where a corrosion-resistant stainless steel cramp is required.

Specifications

Brand: Expamet
Type: Safe end frame cramp
Projection: 200mm
Height: 50mm
Wing Width: 19mm
Gauge: 2.0mm
Material: Stainless steel, mill finish
Fixing: Pre-punched holes, max M8
Bed Joint: 10-12mm
Minimum Embedment: 62.5mm

Key Features

• Stainless steel frame cramp
• 200mm projection with 50mm upstand
• 19mm wing width in 2.0mm gauge
• Pre-punched holes for frame fixing
• Curved safety end to prevent injury
• For 10-12mm bed joints
• 62.5mm minimum design embedment
