Expamet Angle Bracket 90 x 90 x 60mm

Expamet Angle Bracket - 90 x 90 x 60mm

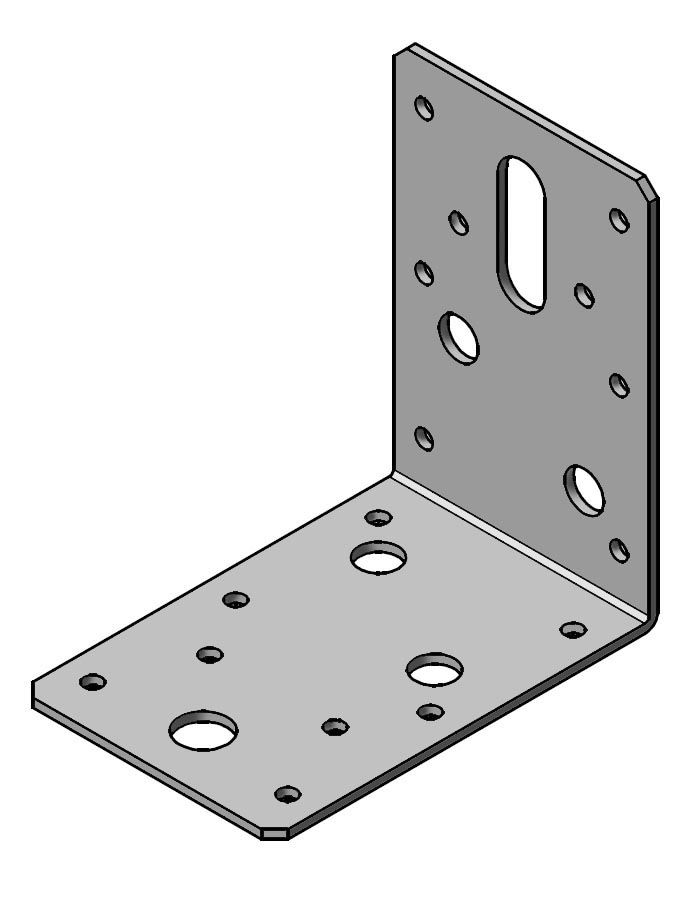

Expamet light duty angle bracket in galvanised mild steel, with a 90mm projection, 90mm height and 59mm wing width in 2.0mm gauge. The steel carries a 275g/m2 zinc coating for protection against corrosion.

The bracket is pierced with sixteen 4mm holes, four 9mm holes, one 11mm hole and one 11 x 30mm slot, so the fixing can be chosen to suit the substrate and hole size. Brackets must be used in pairs to prevent eccentric loading. Used for timber connections and small structural joints where a galvanised right-angle fixing is required.

Specifications

Brand: Expamet
Type: Light duty angle bracket
Size: 90 x 90 x 60mm
Projection: 90mm
Height: 90mm
Wing Width: 59mm
Gauge: 2.0mm
Material: Galvanised mild steel
Finish: 275g/m2 zinc coating
Fixing Holes: 16 x 4mm, 4 x 9mm, 1 x 11mm, 1 x 11 x 30mm slot
Weight: 168g

Key Features

• Galvanised mild steel construction
• 275g/m2 zinc coating
• 90mm projection and 90mm height
• 59mm wing width in 2.0mm gauge
• 22 fixing holes including an 11 x 30mm slot
• Fixings chosen to suit substrate and hole size
• Used in pairs to prevent eccentric loading
• Light duty timber connector
