Expamet Angle Bracket 60 x 40mm Light Duty
- Size: 60 x 40mm
- Gauge: 2.0mm
- Material: Galvanised mild steel
- Light duty angle bracket
- Use in pairs

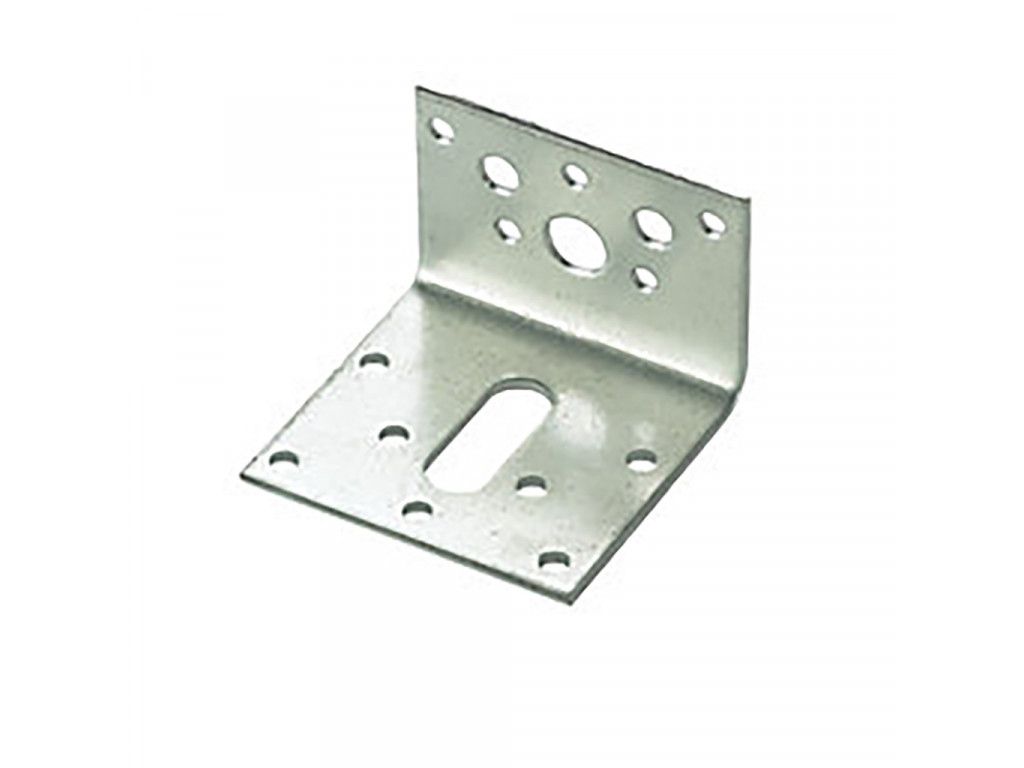

Expamet Angle Bracket - 60 x 40mm Light Duty
Expamet light duty angle bracket in galvanised mild steel, with a 60mm projection, 40mm height and 59mm width in 2.0mm gauge. The steel carries a 275g/m2 zinc coating for protection against corrosion.
The bracket is pierced with holes for a choice of fixings, and 3.75 x 30mm square twisted nails are specified to achieve the stated loads. Brackets must be used in pairs to prevent eccentric loading. Used for timber connections and small structural joints where a galvanised right-angle fixing is required.
Specifications
Brand: Expamet
Type: Light duty angle bracket
Size: 60 x 40mm
Projection: 60mm
Height: 40mm
Width: 59mm
Gauge: 2.0mm
Material: Galvanised mild steel
Finish: 275g/m2 zinc coating
Weight: 79g
Key Features
- Galvanised mild steel construction
- 275g/m2 zinc coating
- 60mm projection and 40mm height
- 2.0mm gauge steel
- Fix with 3.75 x 30mm square twisted nails
- Used in pairs to prevent eccentric loading
- Light duty timber connector
