Expamet Angle Bracket 150 x 90 x 59mm

Expamet Angle Bracket 150 x 90 x 59mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Size: 150x90x59mm
  • Gauge: 2.0mm
  • Material: Galvanised mild steel
  • Weight: 197g
  • Use in pairs
£4.20
per Each inc VAT
In Stock
Unable to load stock information

Expamet Angle Bracket - 150 x 90 x 59mm

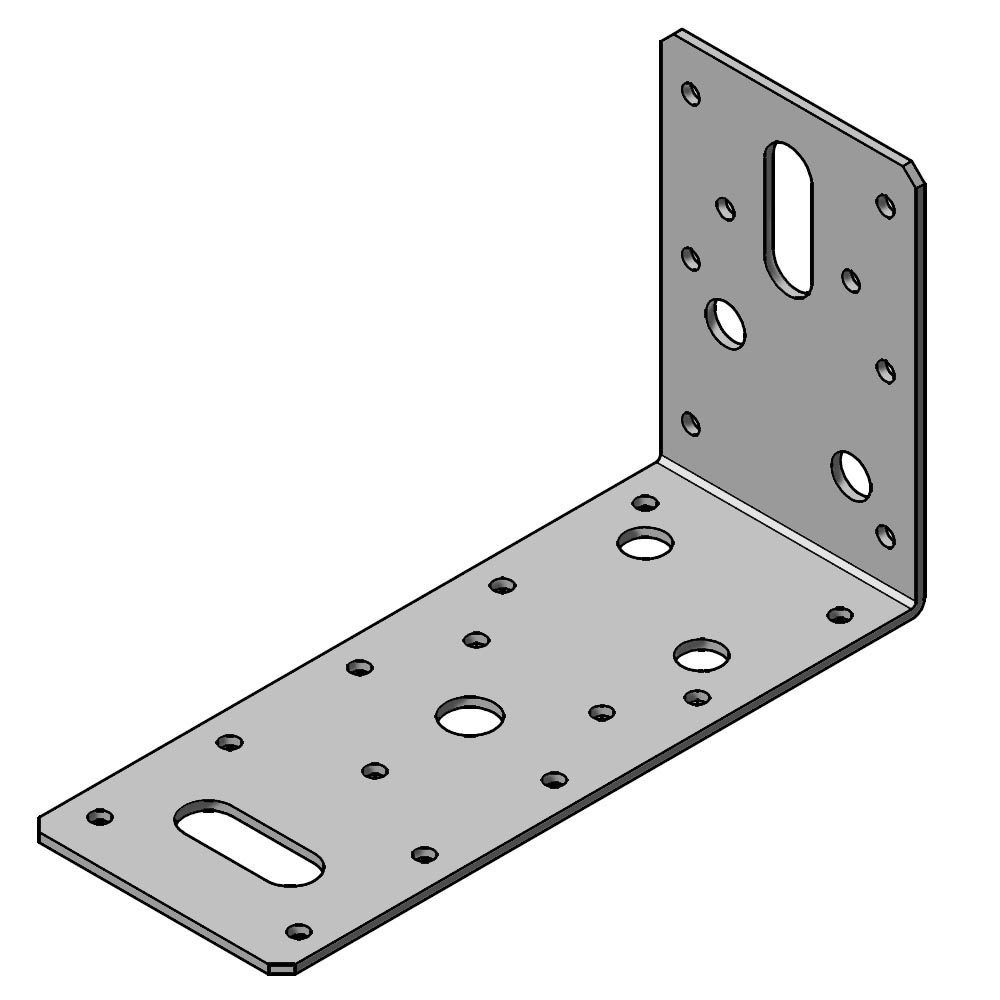

Expamet light duty angle bracket in galvanised mild steel, with a 150mm projection, 90mm height and 59mm wing width in 2.0mm gauge. The steel carries a 275g/m2 zinc coating for protection against corrosion.

The bracket is pierced with twenty-one 4mm holes, four 9mm holes, one 11mm hole and two 11 x 30mm slots, so the fixing can be chosen to suit the substrate and hole size. Brackets must be used in pairs to prevent eccentric loading. Used for timber connections and structural joints where a galvanised right-angle fixing is required.

Specifications

Brand: Expamet
Type: Light duty angle bracket
Size: 150 x 90 x 59mm
Projection: 150mm
Height: 90mm
Wing Width: 59mm
Gauge: 2.0mm
Material: Galvanised mild steel
Finish: 275g/m2 zinc coating
Fixing Holes: 21 x 4mm, 4 x 9mm, 1 x 11mm, 2 x 11 x 30mm slots
Weight: 197g

Key Features

  • Galvanised mild steel construction
  • 275g/m2 zinc coating
  • 150mm projection and 90mm height
  • 59mm wing width in 2.0mm gauge
  • 28 fixing holes including two 11 x 30mm slots
  • Fixings chosen to suit substrate and hole size
  • Used in pairs to prevent eccentric loading
  • Light duty timber connector

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
