Expamet Angle Bracket 150 x 150 x 63mm

Expamet Angle Bracket - 150 x 150 x 63mm

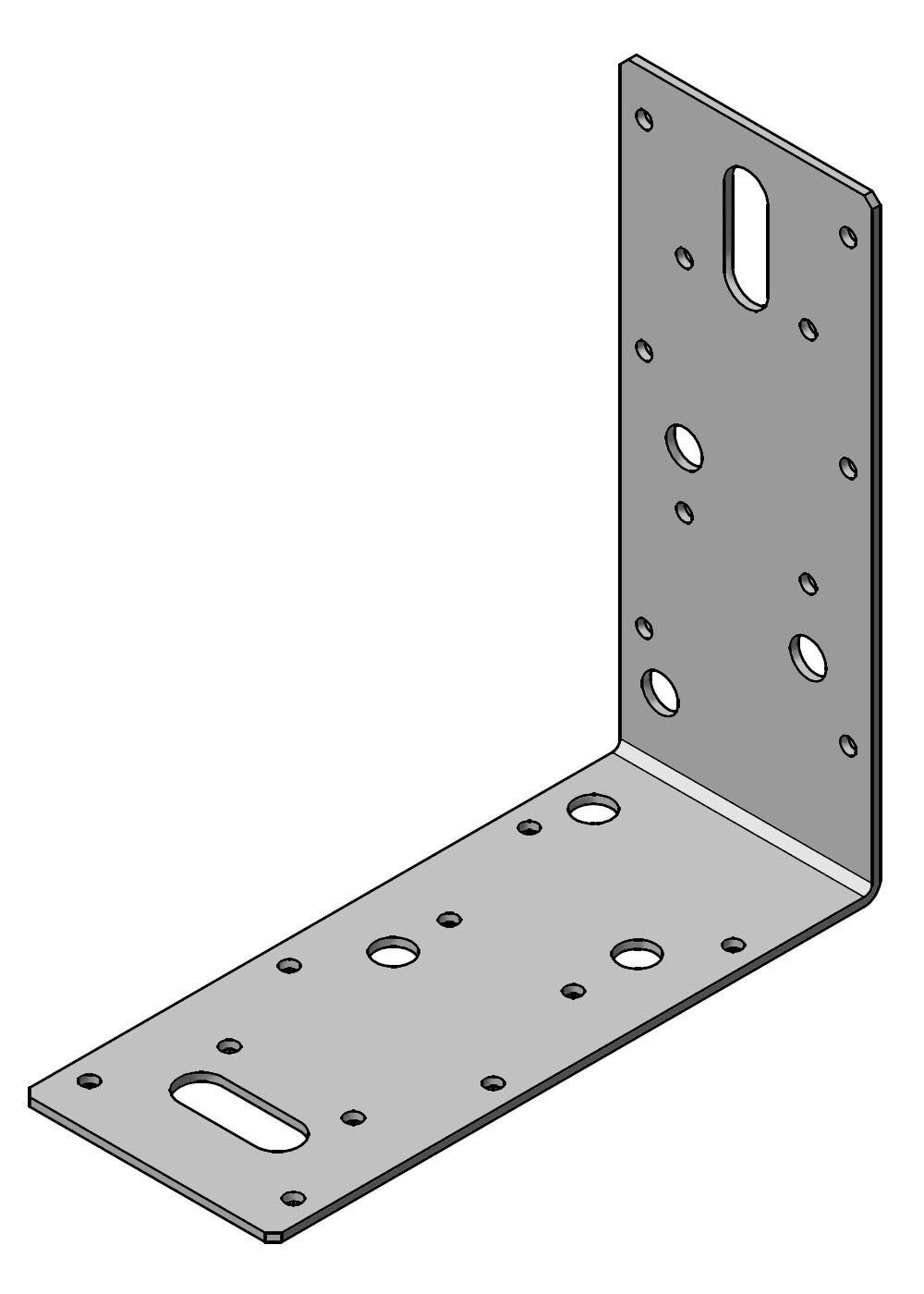

Expamet light duty angle bracket in galvanised mild steel, with a 150mm projection, 150mm height and 63mm wing width in 2.0mm gauge. The steel carries a 275g/m2 zinc coating for protection against corrosion.

The bracket is pierced with twenty 4mm holes, six 9mm holes and two 11 x 30mm slots, so the fixing can be chosen to suit the substrate and hole size. Brackets must be used in pairs to prevent eccentric loading. Used for timber connections and structural joints where a galvanised right-angle fixing is required.

Specifications

Brand: Expamet
Type: Light duty angle bracket
Size: 150 x 150 x 63mm
Projection: 150mm
Height: 150mm
Wing Width: 63mm
Gauge: 2.0mm
Material: Galvanised mild steel
Finish: 275g/m2 zinc coating
Fixing Holes: 20 x 4mm, 6 x 9mm, 2 x 11 x 30mm slots
Weight: 274g

Key Features

• Galvanised mild steel construction
• 275g/m2 zinc coating
• 150mm projection and 150mm height
• 63mm wing width in 2.0mm gauge
• 28 fixing holes including two 11 x 30mm slots
• Fixings chosen to suit substrate and hole size
• Used in pairs to prevent eccentric loading
• Light duty timber connector
