Expamet 225mm Type 4 Stainless Wall Tie

Expamet Type 4 Stainless Steel Housing Wall Tie - 225mm

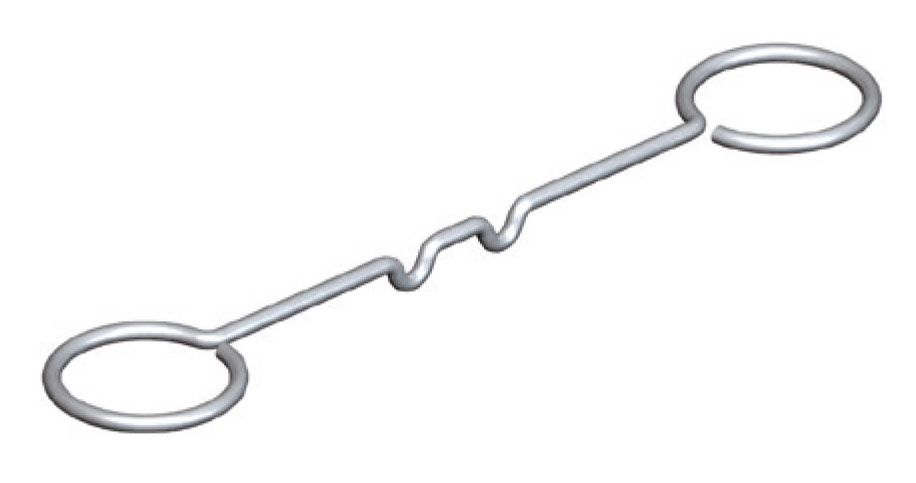

The Expamet 225mm Type 4 housing tie is a symmetrical stainless steel cavity wall tie for tying the inner and outer leaves of masonry cavity walls with a cavity width of 76-100mm. It is made from 2.3mm high-tensile, corrosion-resistant stainless steel with a mill finish and has a safety end to help prevent injury on site.

The tie is designed for dwellings up to 10m high with no more than 3 storeys, with a minimum design embedment of 62.5mm in each leaf. A retaining disc is required where partial-fill rigid insulation is used. Used for domestic cavity walls and separating party walls where a corrosion-resistant stainless steel tie is required.

Specifications

Type: Type 4 housing tie
Length: 225mm
Cavity Width: 76-100mm
Material: Stainless steel, mill finish
Gauge: 2.3mm
Minimum Embedment: 62.5mm
Building Height: Up to 10m, max 3 storeys
Quantity: 250 ties per box

Key Features

• Symmetrical Type 4 housing tie
• For 76-100mm cavity widths
• High-tensile stainless steel
• Corrosion-resistant mill finish
• Safety end to prevent injury
• Suitable for party wall construction
• Retaining disc available for partial-fill insulation
• Supplied in a box of 250
