Expamet 225mm Screw In Cavity Tie Stainless Steel
- Length: 225mm
- Stainless steel screw in tie
- Cavity width: 76-100mm
- Threaded end for plugs
- Formed with V dip

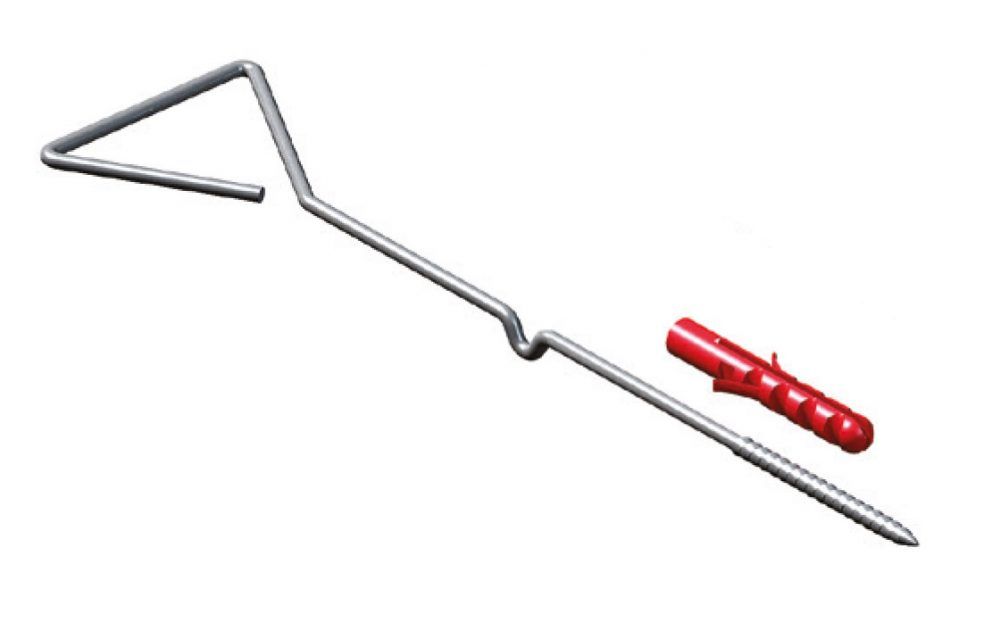

Expamet Screw In Cavity Tie - 225mm Stainless Steel with V Dip
The Expamet 225mm screw in cavity tie is a stainless steel wall tie with a threaded end that screws into a wall plug, and a V dip formed along its length. It is made from 4mm gauge grade 1.4301 stainless steel with a mill finish for corrosion resistance.
The 225mm tie suits cavities of 76 to 100mm, with a minimum design embedment of 62.5mm, and has a declared tension capacity of 2050N and compression capacity of 2260N. Used for cavity wall construction and fixing into plugged masonry where a corrosion resistant stainless steel tie is required.
Specifications
Brand: Expamet
Type: Screw in cavity tie with V dip
Length: 225mm
Cavity Width: 76-100mm
Material: Grade 1.4301 stainless steel, mill finish
Gauge: 4mm
Minimum Embedment: 62.5mm
Tension Capacity: 2050N
Compression Capacity: 2260N
Weight: 39g
Key Features
- Threaded end screws into a wall plug
- V dip formed in the tie
- Grade 1.4301 stainless steel
- Corrosion resistant mill finish
- For 76-100mm cavities
- Declared tension capacity of 2050N
- Declared compression capacity of 2260N
