Expamet 200mm Type 4 Stainless Wall Tie

Expamet Type 4 Stainless Steel Housing Wall Tie - 200mm

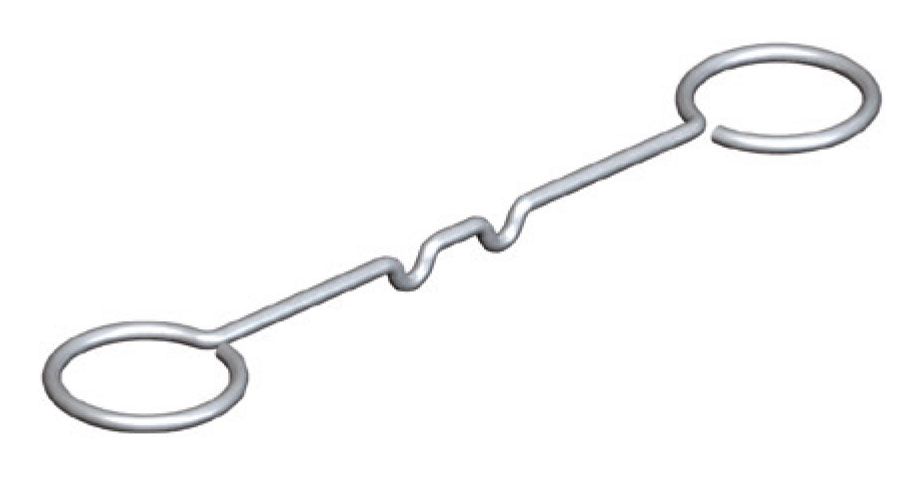

The Expamet 200mm Type 4 housing tie is a stainless steel cavity wall tie for tying the inner and outer leaves of masonry cavity walls with a cavity width of 50-75mm. It is made from 2.3mm gauge high-tensile, corrosion-resistant stainless steel with a 28mm wing width and a mill finish, and has a safety end to help prevent injury on site.

The tie is designed for dwellings up to 10m high with no more than 3 storeys, with a minimum design embedment of 62.5mm in each leaf. It is bedded and covered in fresh mortar before the next course is laid, and a retaining disc is required where partial-fill rigid insulation is used. Used for domestic cavity walls and separating party walls where a corrosion-resistant stainless steel tie is required.

Specifications

Type: Type 4 housing tie
Length: 200mm
Cavity Width: 50-75mm
Material: Stainless steel, mill finish
Gauge: 2.3mm
Wing Width: 28mm
Minimum Embedment: 62.5mm
Building Height: Up to 10m, max 3 storeys
Quantity: 250 ties per box

Key Features

• Type 4 housing tie
• For 50-75mm cavity widths
• High-tensile stainless steel
• Corrosion-resistant mill finish
• Safety end to prevent injury
• For use in party wall construction
• Retaining disc available for partial-fill insulation
• Supplied in a box of 250
