FP McCann 150mm Prestressed Floor Beam 4.8m

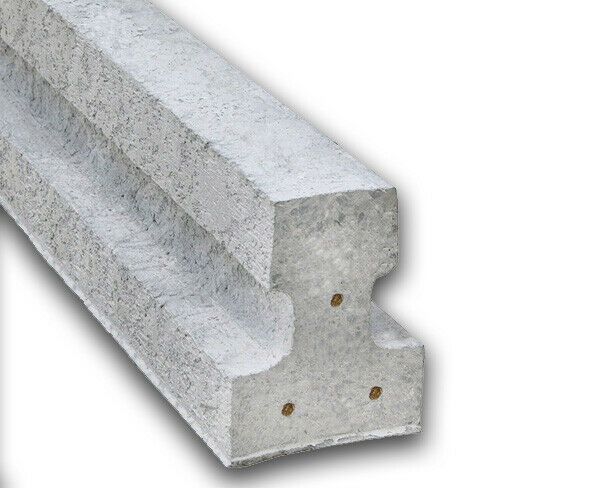

FP McCann Prestressed Concrete Floor Beam - 150mm x 4800mm

Precast, prestressed concrete T-beam from FP McCann, 150mm deep and 4800mm long, for beam and block flooring. The beams are infilled with concrete blocks or a polystyrene panel system to form ground and upper floors in residential and other buildings, from extensions to large housing sites.

The T-beam profile permits inner leaf blockwork to be built above bearing level to give a tight friction finish, and the system is a dry form of construction. Maximum clear span depends on the block infill layout and the loading. Used for ground floors and upper floors where a precast prestressed concrete beam is required.

Specifications

Type: Prestressed concrete T-beam
Depth: 150mm
Length: 4800mm
Material: Precast concrete
Application: Beam and block floors
Infill: Concrete blocks or polystyrene panels

Key Features

• Precast, prestressed concrete construction
• 150mm deep T-beam profile
• 4800mm length
• Infilled with concrete blocks or polystyrene panels
• Inner leaf blockwork can be built above bearing level
• Dry construction system
• For ground and upper floors
