Birtley SB100 Internal Box Lintel 3000mm

Birtley SB100 Internal Box Lintel 3000mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Length: 3000mm
  • For 100mm block walls
  • Internal wall box lintel
  • Load capacity: 25kN
  • 150mm minimum end bearing
£924.00
per Each inc VAT
In Stock(Only 6 left)
Unable to load stock information

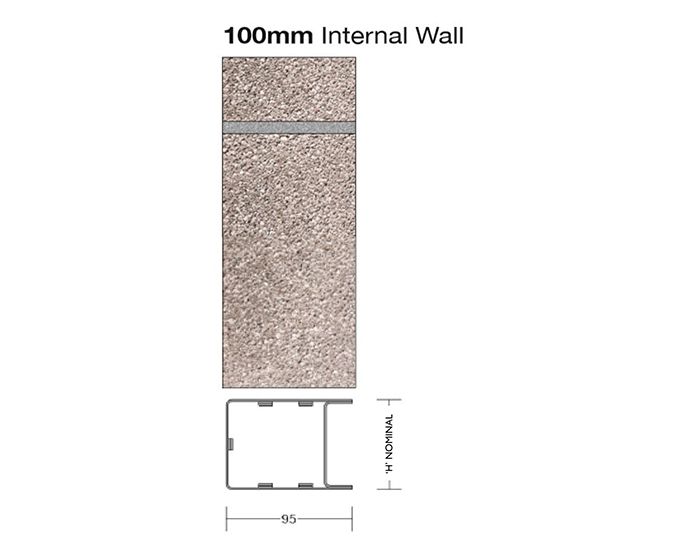

Birtley SB100 Internal Wall Box Lintel - 3000mm

The Birtley SB100 is a standard duty steel box lintel for internal walls built from 100mm loadbearing blockwork. This 3000mm length is 215mm high, carries a safe working load of 25kN and is made from S275JR mild steel, hot-dip galvanised to 65 microns.

It is fully bedded on bricklaying mortar and needs a minimum end bearing of 150mm at each side and lintels over 1200mm must be propped during construction. Used for door and other openings in internal block walls where a galvanised steel box lintel is required.

Specifications

Brand: Birtley
Type: Standard duty internal wall box lintel
Length: 3000mm
Wall Thickness: 100mm blockwork
Height: 215mm
Load Capacity: 25kN
Weight: 10.8kg per metre
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish

Key Features

  • Internal wall box lintel
  • Suits 100mm loadbearing blockwork
  • 25kN load capacity at 3000mm
  • Hot-dip galvanised mild steel
  • Minimum 150mm end bearing
  • Prop during construction

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
