Birtley SB100 Internal Box Lintel 1200mm
- Length: 1200mm
- For 100mm block walls
- Internal wall box lintel
- Load capacity: 15kN
- 150mm minimum end bearing

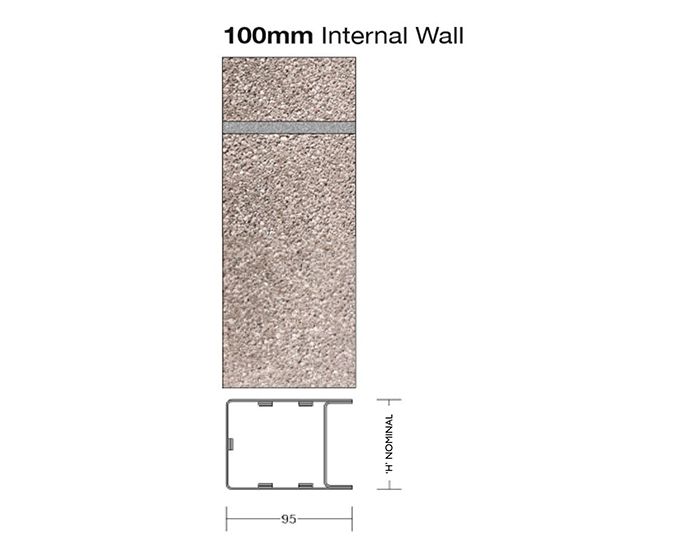

Birtley SB100 Internal Wall Box Lintel - 1200mm
The Birtley SB100 is a standard duty steel box lintel for internal walls built from 100mm loadbearing blockwork. This 1200mm length is 76mm high, carries a safe working load of 15kN and is made from S275JR mild steel, hot-dip galvanised to 65 microns.
It is fully bedded on bricklaying mortar and needs a minimum end bearing of 150mm at each side. Used for door and other openings in internal block walls where a galvanised steel box lintel is required.
Specifications
Brand: Birtley
Type: Standard duty internal wall box lintel
Length: 1200mm
Wall Thickness: 100mm blockwork
Height: 76mm
Load Capacity: 15kN
Weight: 4.9kg per metre
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- Internal wall box lintel
- Suits 100mm loadbearing blockwork
- 15kN load capacity at 1200mm
- Hot-dip galvanised mild steel
- Minimum 150mm end bearing
- 60 minute fire resistance with plaster
Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
