Birtley HD90 Heavy Duty Cavity Lintel 3300mm

Birtley HD90 Heavy Duty Cavity Lintel 3300mm
Free Delivery

On orders over £300

30-Day Returns

Easy returns policy

Expert Advice

Call us for technical support

  • Length: 3300mm
  • Cavity width: 90-105mm
  • Heavy duty cavity lintel
  • Integral EPS insulation
  • Galvanised mild steel
£1842.00
per Each inc VAT
In Stock(Only 4 left)
Unable to load stock information

Birtley HD90 Heavy Duty Cavity Wall Lintel - 3300mm

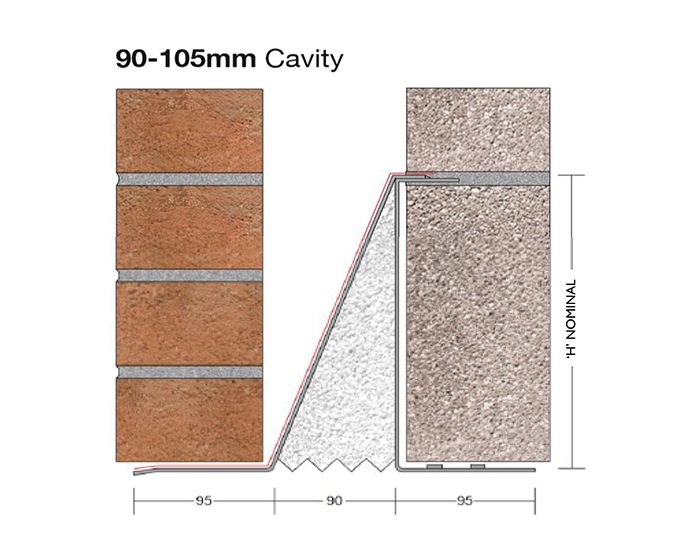

The Birtley HD90 is a heavy duty steel cavity wall lintel for 90-105mm cavities with 100mm inner and outer leaves, supplied here in the 3300mm length. It is galvanised after fabrication and has integral expanded polystyrene insulation, a plaster key on the inner leaf and a drip on the outer leaf.

It needs a minimum end bearing of 150mm, must be used with a cavity tray and is for external walls with fully jointed solid blockwork on the inner leaf. Used for wide door and window openings in cavity walls where a heavy duty insulated steel lintel is required.

Specifications

Brand: Birtley
Type: Heavy duty cavity wall lintel
Length: 3300mm
Cavity Width: 90-105mm
Inner and Outer Leaf: 100mm
Material: Galvanised mild steel
Insulation: Integral expanded polystyrene
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish

Key Features

  • Heavy duty cavity wall lintel
  • For 90-105mm cavity walls
  • 100mm inner and outer leaves
  • Galvanised after fabrication
  • Integral EPS insulation
  • Plaster key and outer leaf drip
  • Use with a cavity tray

Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
