Birtley HD90 Heavy Duty Cavity Lintel 1500mm
- Length: 1500mm
- Cavity width: 90-105mm
- Heavy duty cavity lintel
- Integral EPS insulation
- Galvanised mild steel
Birtley HD90 Heavy Duty Cavity Wall Lintel - 1500mm

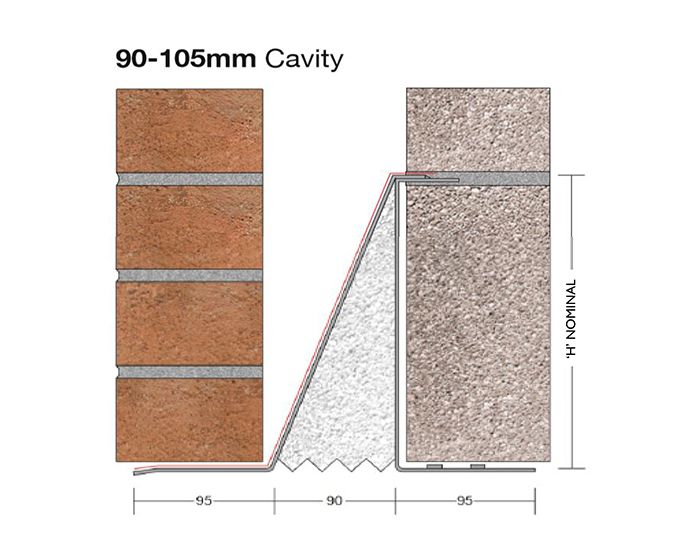

The Birtley HD90 is a heavy duty steel cavity wall lintel for 90-105mm cavities with 100mm inner and outer leaves, supplied here in the 1500mm length. It is galvanised after fabrication and has integral expanded polystyrene insulation, a plaster key on the inner leaf and a drip on the outer leaf.
It needs a minimum end bearing of 150mm, must be used with a cavity tray and is for external walls with fully jointed solid blockwork on the inner leaf. Used for wide door and window openings in cavity walls where a heavy duty insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Heavy duty cavity wall lintel
Length: 1500mm
Cavity Width: 90-105mm
Inner and Outer Leaf: 100mm
Material: Galvanised mild steel
Insulation: Integral expanded polystyrene
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- Heavy duty cavity wall lintel
- For 90-105mm cavity walls
- 100mm inner and outer leaves
- Galvanised after fabrication
- Integral EPS insulation
- Plaster key and outer leaf drip
- Use with a cavity tray
Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
