Birtley HD90 Heavy Duty Cavity Lintel 1200mm
- Length: 1200mm
- Cavity width: 90-105mm
- Load capacity: 70kN
- Heavy duty galvanised lintel
- Expanded polystyrene insulation
Birtley HD90 Heavy Duty Cavity Wall Lintel - 1200mm

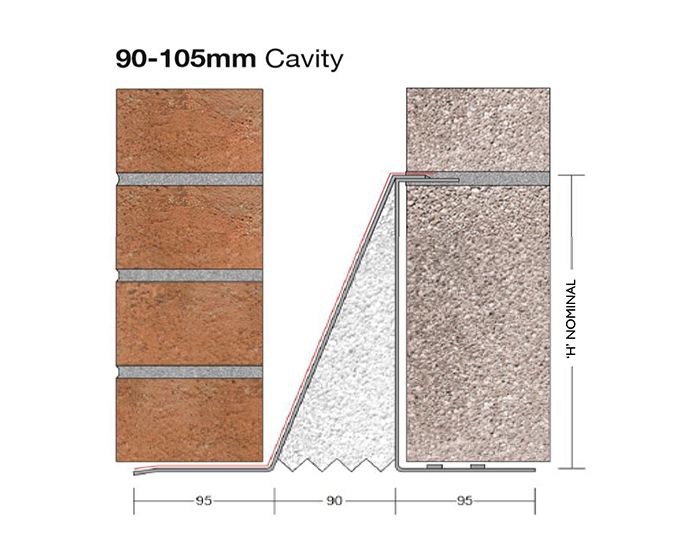

The Birtley HD90 is a heavy duty steel cavity wall lintel for 90-105mm cavities with 100mm inner and outer leaves. This 1200mm length is 231mm high and is made from S275JR mild steel, hot-dip galvanised to 65 microns after fabrication, with expanded polystyrene insulation and a plaster key on the inner leaf.
It carries a safe working load of 70kN and must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls, and the inner leaf requires solid, fully jointed blockwork infill. Used for door and window openings in masonry cavity walls where a heavy duty insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Heavy duty cavity wall lintel
Length: 1200mm
Height: 231mm
Cavity Width: 90-105mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Expanded polystyrene
Load Capacity: 70kN
Weight: 14.8kg per metre
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- For 90-105mm cavity walls
- 100mm inner and outer leaves
- 70kN load capacity at 1200mm
- Hot-dip galvanised after fabrication
- Expanded polystyrene insulation
- Plaster key on the inner leaf
- Minimum 150mm end bearing
- Use with a cavity tray in external walls
Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
