Birtley HD150 Heavy Duty Cavity Lintel 2400mm
- Length: 2400mm
- Cavity width: 150-165mm
- Load capacity: 60kN
- Heavy duty cavity lintel
- Galvanised mild steel

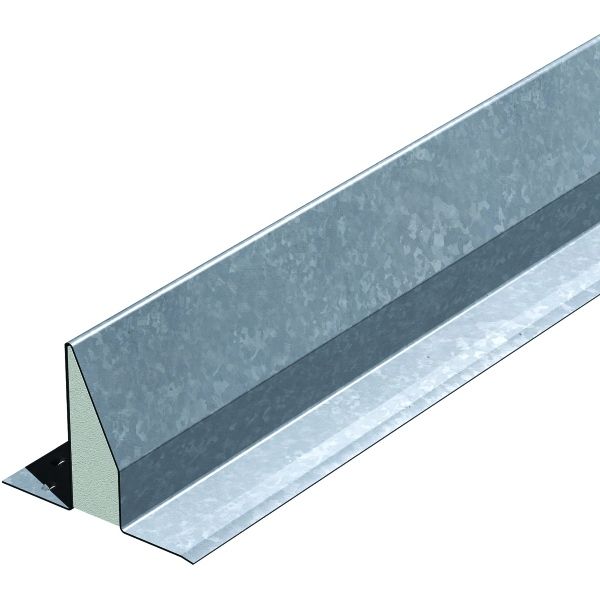

Birtley HD150 Heavy Duty Cavity Wall Lintel - 2400mm
The Birtley HD150 is a heavy duty steel cavity wall lintel for 150-165mm cavities with 100mm inner and outer leaves. This 2400mm length is 231mm high and carries a load of 60kN. It is made from S275JR mild steel, hot-dip galvanised to 65 microns, with expanded polystyrene insulation.
It is fully bedded on bricklaying mortar with a minimum end bearing of 150mm, must be used with a cavity tray and is for external walls with solid, fully jointed blockwork on the inner leaf. Used for wide door and window openings in cavity walls where a heavy duty insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Heavy duty cavity wall lintel
Length: 2400mm
Height: 231mm
Cavity Width: 150-165mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Expanded polystyrene
Load Capacity: 60kN
Weight: 15.4kg per metre
End Bearing: 150mm minimum
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- Heavy duty cavity wall lintel
- For 150-165mm cavity walls
- 100mm inner and outer leaves
- 60kN load capacity at 2400mm
- Hot-dip galvanised mild steel
- Expanded polystyrene insulation
- Minimum 150mm end bearing
- Use with a cavity tray
Available to collect from our Andover, Poole and Southampton (Dibles Wharf and Winchester Road) branches, with delivery across Hampshire and Dorset.
