Birtley CB90 Cavity Lintel 900mm
- Length: 900mm
- Cavity width: 90-105mm
- Load capacity: 15kN
- Galvanised steel cavity lintel
- Factory-fitted insulation
Birtley CB90 Standard Duty Cavity Wall Lintel - 900mm

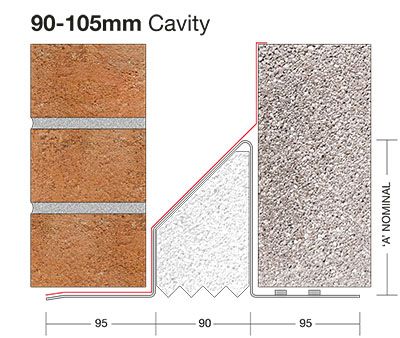

The Birtley CB90 is a standard duty steel cavity wall lintel for 90-105mm cavities with 100mm inner and outer leaves. This 900mm length is 97mm high and is made from S275JR mild steel, hot-dip galvanised to 65 microns, with factory-fitted expanded polystyrene insulation.
It carries a safe working load of 15kN and must be fully bedded on bricklaying mortar with a minimum end bearing of 150mm. It is used with a cavity tray in external walls and is not for point loads or concrete floors. Used for door and window openings in masonry cavity walls where an insulated steel lintel is required.
Specifications
Brand: Birtley
Type: Standard duty cavity wall lintel
Length: 900mm
Height: 97mm
Cavity Width: 90-105mm
Inner and Outer Leaf: 100mm
Material: S275JR mild steel
Finish: 65 micron hot-dip galvanised
Insulation: Factory-fitted expanded polystyrene
Load Capacity: 15kN
Weight: 5.8kg per metre
Fire Resistance: 60 minutes with a two-coat plaster finish
Key Features
- For 90-105mm cavity walls
- 100mm inner and outer leaves
- 15kN load capacity at 900mm
- Hot-dip galvanised mild steel
- Factory-fitted EPS insulation
- Minimum 150mm end bearing
- Use with a cavity tray in external walls
